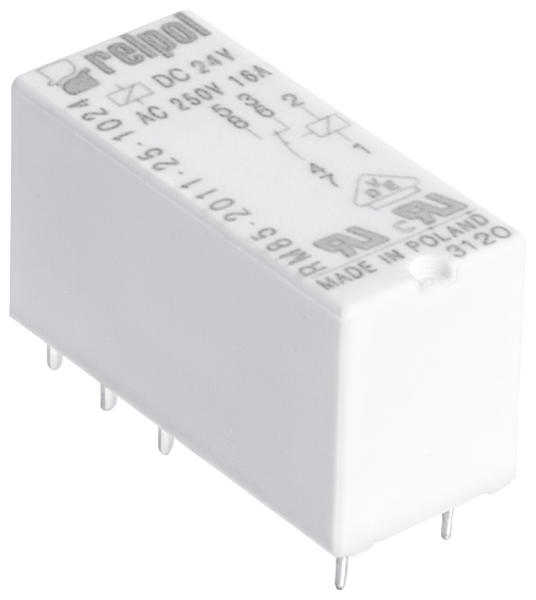

Contacts: 1CO, 1NO; rated load AC1 – 16 A/250 V AC; coils AC or DC; for PCB and sockets
|
Contact data |
||
|
Number and type of contacts |
1 C/O, 1 NO |
|
|
Contact material |
AgNi, AgNi/Au 5 µm, AgSnO2 |
|
|
Rated / max. switching voltage |
AC |
250 V / 440 V |
|
Rated load (capacity) |
AC1 |
16 A / 250 V AC |
|
DC1 |
16 A / 24 V DC |
|
|
Rated current |
16 A |
|
|
Max. breaking capacity |
AC1 |
4 000 VA |
|
Coil data |
||
|
Rated voltage |
50/60 Hz AC |
12 ... 240 V |
|
DC |
3 ... 110 V |
|
|
Rated power consumption |
AC |
0,75 VA |
|
DC |
0,4 ... 0,48 W |
|
|
Insulation |
||
|
Dielectric strength |
||
|
between coil and contacts |
5 000 V AC |
|
|
contact clearance |
1 000 V AC |
|
|
General data |
||
|
Electrical life resistive |
AC1 |
>0,7 x 105 16 A, 250 V AC |
|
>104 20 A, 250 V AC, 85 °C (RM85-3021-25-1...) |
||
|
Mechanical life (cycles) |
>3 x 107 |
|
|
Ambient temperature operating |
AC |
-40...+70 oC |
|
DC |
-40...+85 oC |
|
|
Sockets |
GZT80, GZM80, GZS80, GZMB80, EC50, PW80, GD50 |
|
|
Accessories for sockets |
Signaling / protecting modules type M |
|
