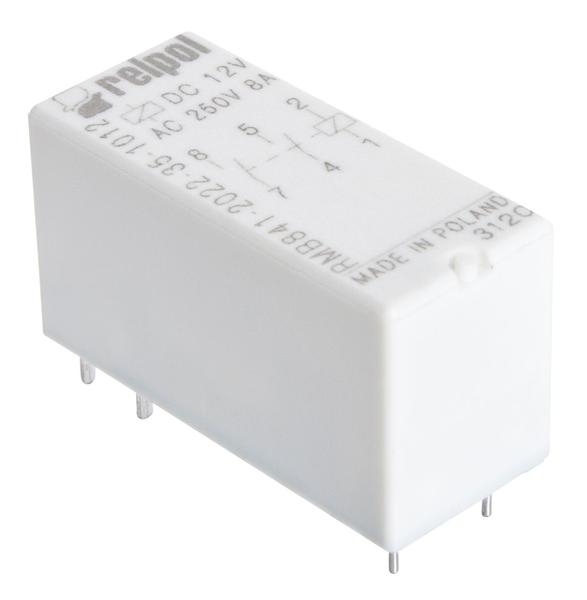

Przekaźnik RMB841
Przekaźnik miniaturowwy RMB841 bok





Contacts: 2 NO; rated load AC1 – 8 A/250 V AC; colis DC; for PCB and sockets



Contact data

Number and type of contacts



2 NO

Contact material



AgNi

Rated / max. switching voltage

AC

400 V

Rated load (capacity)

AC1

8 A/250 V AC

DC1

8 A/24 V DC

Rated current



8 A

Max. breaking capacity

AC1

2 000 VA

Coil data

Rated voltage

DC

3 ... 24 V

Rated power consumption

DC

0,9 W

Insulation

Dielectric strength

 - between coil and contacts

 - contact clearance

 - pole - pole



5 000 V AC



1 000 V AC



2 500 V AC

General data

Electrical life resistive

AC1

3 x 104   8 A, 250 V AC

Mechanical life (cycles)



2 x 106

Ambient temperature operating

AC

-40…+85°C

DC

-20…+85°C

Sockets

GZT80, GZM80, GZS80, GZMB80, EC50, PW80, GD50
