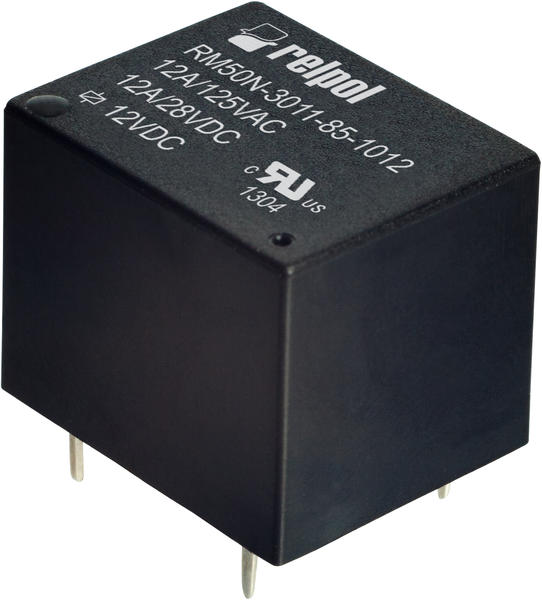

RM50N
Contacts: 1CO, 1NO; rated load AC 12 A/125 V AC; for PCB; DC coils - of up to 48 V DC, low coil power 0,36 W


Contact data

Number and type of contacts



1 CO, 1 NO

Contact material



AgSnO2, AgCdO

Rated / max. switching voltage

AC

125 V / 277 V

Rated load (capacity)

AC1

12 A / 125 V AC

DC1

12 A / 28 V DC

Rated current



12 A

Max. breaking capacity

AC1

1 500 VA

Coil data

Rated voltage

DC

5 ... 48 V

Rated power consumption

DC

0,36 W

Insulation

Dielectric strength

- between coil and contacts

1 500 V AC

- contact clearance

750 V AC

General data

Electrical life resistive

AC1

105  12 A/125 V AC

Mechanical life (cycles)



107

Ambient temperature operating



-55…+85°C
