Accessories
Info
QuickFit Protection Basket
Our protection baskets are valuable accessories: they protect against collisions, give additional protection against dust and are an optical enhancement. Like the heaters themselves, they are manufactured in high-grade steel, so that we offer a logical solution regarding both quality of material and optical general impression.
QuickFit
You fix our baskets without any further tools or drillholes! Just put the basket over the already mounted RiRo and wedge it, ready!
| Stainless steel type 1.4301 – Width 150 mm, Height 195 mm | ||||||
| Order No. | korb 0500 | korb 1000 | korb 1500 | korb 2000 | korb 3000 | korb 4000 |
| Length mm | 380 | 580 | 780 | 980 | 1380 | 1740 |
|
fits RiRo |
u 500 E | u 1000 E | u 1500 E | u 2000 E | u 3000 E | u 4000 E |
| a 500 E | s 1000 E | s 1500 E | s 2000 E | s 3000 E | f 1200 E | |
| f 120 E | a 1000 E | a 1500 E | a 2000 E | a 3000 E | fa 1200 E | |
| fa 120 E | f 600 E | f 935 E | nt 1000 E | |||
| fa 600 E | fa 935 E | nta 1000 E | ||||
| nt 500 E | nt 800 E | |||||
| nta 500 E | nta 800 E | |||||
Safety cover for adjustment knob
In many cases the position of the switch, once adjusted, shall not be altered.Just mount this safety cover to prevent manipulation by unauthorized people.
Made of stainless steel, A2-Torx screws are included.
| Order No. | Height mm | Width mm | Depth mm |
| Abdeck | 93 | 93 | 17 |
Thermostat for automatic regulation of temperature
For saving energy with electrical heaters we offer thermostats for the range of – 20°C to + 35°C..
| Protection degree IP 65 | Temperature -20 °C to + 35 °C |
| H x W x D mm | 122 x 120 x 55 |
| Switching capacity 230 V, 50 Hz | 16 A |
| Order No. | 1-000 |

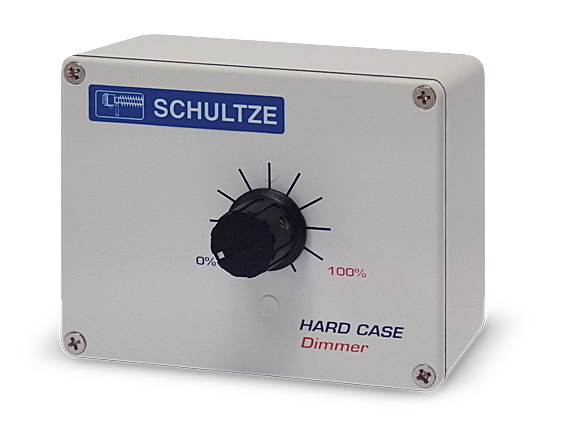

Controls for infrared heaters with loads up to 3000 W.
For energy-saving we recommend our Dimmer providing adjustment from 0% to 100% of heater output with ‘click’ to turn off. Also available: Movement sensor with adjustable sensitivity and time delay.
| Dimmer | Movement sensor | |
| Dimensions mm | 90 x 115 x 58 | 115 x 86 x 65 |
| Protection degree | IP 55 | IP 44 |
| Switching capacity | 13A / 230V | 16A / 230V |
| Range |
on / off 30%- 100% |
sensitivity switch-on time 5s- 18 min |
| Order No. | HWP-D | HWP-BM |
Cable connections
For the connection of our appliances to the available 230-V net we offer in addition our pre-assembled cables.
| Cabel type | Length mm | Order No. |
| H07RN- F3G 1,5 mm | 3000 | KA3M3X15 |
