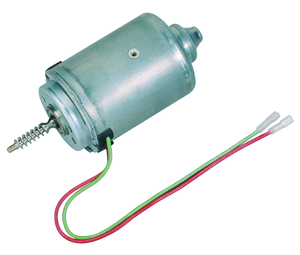

Motor picture
Technical description
Motorhousing deep drawn & corrosion protected
Excitation field permanent magnet
Type of gear mesh -
Gear housing -
Gear wheel material -
Lubrication grease
Mechanical interface steel shaft
Electric interface leads with connector
Sensor optional
thermal protection optional
EMC suppression optional
Applications
Industrial:
Linear Drives
Automotive:
Electric torque management, Automated manual transmission
Design Data
| Commutation | Brushed | |
| Direction of rotation | Bi-directional | |
| Bearing type |
Performance data
| Rated voltage [V] | UN | 24 |
| Nominal torque [Nm] | MN | 0.19 |
| Nominal speed [min-1] | nN | 2646.923 |
| Nominal power [W] | PN | 52.665 |
| Nominal current [A] | IN | 5 |
| Nominal force [kN] | FN | 0 |
Sensor data
| Pulses | 0 | |
| Output channels | 0 |
Other data
| Gear ratio | ||
| Gear wheel material | ||
| Suppression components | 5μH | |
| Enclosure class | IP 30 | |
| Weight | 0.9 |
Remarks
1 start worm
Connector layouts
Description
I Blade terminal receptacles 2,8 x 0,8 DIN 46 247
II green
III red
Characteristic curves
Drawing
Shafts
Description
no of starts 1, lead angle 9°, pressure angle 10°, module 1, pitch 3,14159 mm (0,124")
Wiring diagrams
