404 386 (SW2L)    订购编号:

点击这里发送询价

请详细填写一下内容,包括产品原产国、品牌完整名称以及您所能得到的所有信息,这将有助于我们准确迅速的报价。非常感谢!

品牌厂商(Manutacturer)*

公司名称*

产品名称(Product Name)*

联系人*

产品型号(Product Type)*

联系地址*

产品序列号(ID-Nr;Artikel-Nr)

联系电话*

产品描述(Voltage,Amp,Kw,Rpm)

传真*

需求数量(Quantity demanded)

联系邮箱*

附加信息,更具体要求

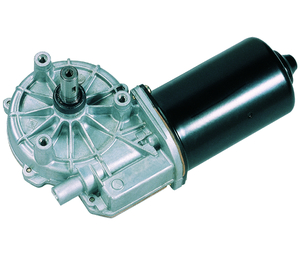

Motor picture

Motor picture 404 386

Technical description

Motorhousing deep drawn & corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing aluminium die cast

Gear wheel material plastic

Lubrication grease

Mechanical interface steel shaft

Electric interface connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Gate Opener, Patient Hoist, Machine construction

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A:Ball - B:Sleeve

Performance data

Rated voltage [V] UN 24
Nominal torque [Nm] MN 4
Nominal speed [min-1] nN 174.49
Nominal power [W] PN 73.09
Nominal current [A] IN 7
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio   103/4
Gear wheel material   plastic
Suppression components   4,7μH, 1nF
Enclosure class   IP 40
Weight   1.7

Connector layouts

Connector layout K 144

Description

I   Blade terminal ends 6,3 x 0,8 DIN 46 244
II  Blade terminal ends 4,8 x 0,8 DIN 46 244

Characteristic curves

Characteristic curve 404 386

Drawing

Drawing 0278 AR

Shafts

Output shaft drawing W 231
Output shaft drawing W197

Description

No description available

! Lefthand thread

Wiring diagrams

Wiring diagram S 30
