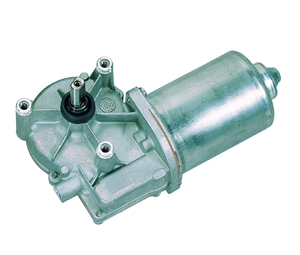

Motor picture
Technical description
Motorhousing Deep drawn, corrosion protected
Excitation field permanent magnet
Type of gear mesh worm gear
Gear housing aluminium die cast
Gear wheel material plastic
Lubrication grease
Mechanical interface steel shaft
Electric interface connector or tinned leads
Sensor optional
Thermal protection optional
EMC suppression optional
Applications
Industry
Linear drives
General machinery
Vending machines
Agricultural technology
Office machines
Laboratory devices
Medical technology
Traffic & communications technology
Film/optics
Design Data
| Commutation | Brushed | |
| Direction of rotation | Bi-directional | |
| Bearing type |
Performance data
| Rated voltage [V] | UN | 24 |
| Nominal torque [Nm] | MN | 5 |
| Nominal speed [min-1] | nN | 50.197 |
| Nominal power [W] | PN | 26.283 |
| Nominal current [A] | IN | 5 |
| Nominal force [kN] | FN | 0 |
Sensor data
| Pulses | 0 | |
| Output channels | 0 |
Other data
| Gear ratio | 78/1 | |
| Gear wheel material | plastic | |
| Suppression components | 5μH, 1nF | |
| Enclosure class | IP 40 | |
| Weight | 1.2 |
Connector layouts
Description
I Blade terminal ends 6,3 x 0,8 DIN 46 244
II Blade terminal ends 4,8 x 0,8 DIN 46 244
