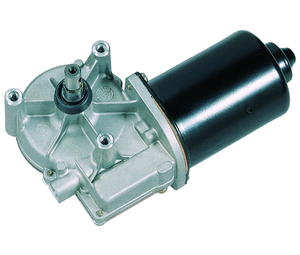

Technical description

Motorhousing Deep drawn, corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing aluminium die cast

Gear wheel material plastic

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or tinned leads

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industry

Linear drives

General machinery

Vending machines

Agricultural technology

Office machines

Laboratory devices

Medical technology

Traffic & communications technology

Film/optics

Design Data

Commutation		Brushed
Direction of rotation		Bi-directional
Bearing type

Performance data

Rated voltage [V]	UN	24
Nominal torque [Nm]	MN	2
Nominal speed [min-1]	nN	210.833
Nominal power [W]	PN	44.157
Nominal current [A]	IN	6
Nominal force [kN]	FN	0

Sensor data

Pulses		0
Output channels		0

Other data

Gear ratio		70/4
Gear wheel material		plastic
Suppression components		""
Enclosure class		IP 40
Weight		1.2

Remarks

Ball bearing

Connector layouts

Description

I   Blade terminal ends 6,3 x 0,8 DIN 46 244
II  Blade terminal ends 4,8 x 0,8 DIN

Characteristic curves

Drawing

Shafts

Description

No description available

! Lefthand thread

Wiring diagrams
