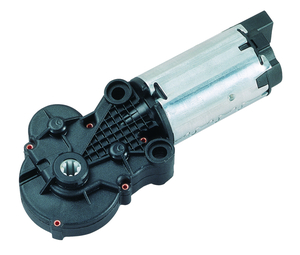

Motor picture

Motor picture 404 747

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh combination of worm and spur gear

Gear housing plastic

Gear wheel material plastic

Lubrication grease

Mechanical interface hollow shaft with profile

Electric interface connector or leads with connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Machine construction

Automotive:

Seat Recline Adjustment

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A:Sleeve - B:Sleeve

Performance data

Rated voltage [V] UN 12
Nominal torque [Nm] MN 3
Nominal speed [min-1] nN 17.786
Nominal power [W] PN 5.588
Nominal current [A] IN 3.5
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio   210/1
Gear wheel material   plastic
Suppression components   5,5μH, 47nF, (0,47μF)
Enclosure class   IP 40
Weight   0.44

Connector layouts

Connector layout K 220

Description

Connector TYCO C-208-15621 (Z) mating with:
Connector housing 1379217-3 & cover 1379218-2

Characteristic curves

Characteristic curve 404 747

Drawing

Drawing 0320 BR

Shafts

Output shaft drawing W 270

Description

I   through profile

Wiring diagrams

Wiring diagram S 93

Description

I   Terminal 1
II  Terminal 5
