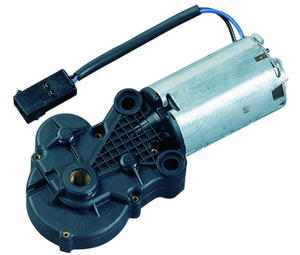

Motor picture
Technical description
Motorhousing sheet metal, rolled and corrosion protected
Excitation field permanent magnet
Type of gear mesh combination of worm and spur gear
Gear housing plastic
Gear wheel material plastic
Lubrication grease
Mechanical interface hollow shaft with profile
Electric interface connector or leads with connector
Sensor optional
Thermal protection optional
EMC suppression optional
Applications
Industrial:
Machine construction
Automotive:
Seat Recline Adjustment
Design Data
| Commutation | Brushed | |
| Direction of rotation | Bi-directional | |
| Bearing type | A:Sleeve - B:Sleeve |
Performance data
| Rated voltage [V] | UN | 24 |
| Nominal torque [Nm] | MN | 4 |
| Nominal speed [min-1] | nN | 35.294 |
| Nominal power [W] | PN | 14.784 |
| Nominal current [A] | IN | 3.5 |
| Nominal force [kN] | FN | 0 |
Sensor data
| Pulses | 0 | |
| Output channels | 0 |
Other data
| Gear ratio | 210/1 | |
| Gear wheel material | plastic | |
| Suppression components | 7,5μH, 1nF | |
| Enclosure class | IP 40 | |
| Weight | 0.44 |
Connector layouts
Description
tap housing 365057-3, timer contacts 928781-5 mating with receptacle housing 365058-3, timer contacts 927768-1
1 black motor, 2 blue motor
Characteristic curves
Drawing
Shafts
Description
I through Profile KRC 316928 AEIZ 01Wiring diagrams
