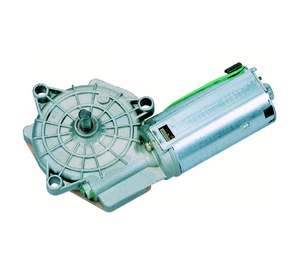

Motor picture
Technical description
Motorhousing sheet metal, rolled and corrosion protected
Excitation field permanent magnet
Type of gear mesh worm gear
Gear housing zinc die cast
Gear wheel material plastic or resinbonded fabric
Lubrication grease
Mechanical interface output shaft
Electric interface connector or leads with connector
Sensor optional
Thermal protection optional
EMC suppression optional
Applications
General machine construction
Automatic machines
Agricultural technology
Business machines
Laboratory appliances
Medical appliances
Traffic & communications technology
Photographic/optical equipment
Design Data
| Commutation | Brushed | |
| Direction of rotation | Bi-directional | |
| Bearing type |
Performance data
| Rated voltage [V] | UN | 24 |
| Nominal torque [Nm] | MN | 2 |
| Nominal speed [min-1] | nN | 40 |
| Nominal power [W] | PN | 8.378 |
| Nominal current [A] | IN | 2.3 |
| Nominal force [kN] | FN | 0 |
Sensor data
| Pulses | 0 | |
| Output channels | 0 |
Other data
| Gear ratio | 85/1 | |
| Gear wheel material | Resinbonded fabric | |
| Suppression components | ||
| Enclosure class | IP30 | |
| Weight | 0.71 |
Remarks
d = M6, Ball bearing
Connector layouts
Description
Spade connector 6.3 x 0.8 DIN 46 244
I: black
II: green
Characteristic curves
Drawing
Shafts
Wiring diagrams
