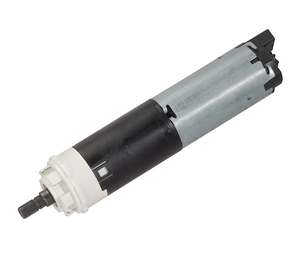

Motor picture
Technical description
Motorhousing sheet metal, rolled and corrosion protected
Excitation field permanent magnet
Type of gear mesh spur gear
Gear housing plastic
Gear wheel material plastic
Lubrication grease
Mechanical interface steel shaft
Electric interface connector or leads with connector
Sensor optional
Thermal protection optional
EMC suppression optional
Applications
Industrial:
Linear actuators, home automation
Automotive:
Spoiler adjustment
Design Data
| Commutation | Brushed | |
| Direction of rotation | Bi-directional | |
| Bearing type | A:Sleeve - B:Sleeve |
Performance data
| Rated voltage [V] | UN | 12 |
| Nominal torque [Nm] | MN | 10 |
| Nominal speed [min-1] | nN | 32.857 |
| Nominal power [W] | PN | 34.408 |
| Nominal current [A] | IN | 8 |
| Nominal force [kN] | FN | 0 |
Sensor data
| Pulses | 116 | |
| Output channels | 1 |
Other data
| Gear ratio | 116/1 | |
| Gear wheel material | plastic | |
| Suppression components | 2,5μH, 47nF, ( ) | |
| Enclosure class | IP 30 | |
| Weight | 0.8 |
