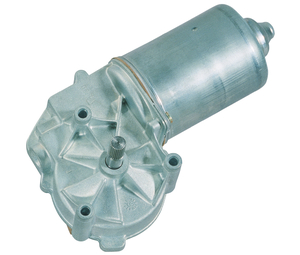

Technical description

Motorhousing deepdrawn & corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic

Lubrication grease

Mechanical interface steel shaft

Electric interface connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Home Automation, Machine Construction

Automotive:

Trunk & tailgate opening & closing

Design Data

Commutation		Brushed
Direction of rotation		Bi-directional
Bearing type		A:Ball - B:Sleeve

Performance data

Rated voltage [V]	UN	24
Nominal torque [Nm]	MN	6
Nominal speed [min-1]	nN	45.714
Nominal power [W]	PN	28.723
Nominal current [A]	IN	4
Nominal force [kN]	FN	0

Sensor data

Pulses		0
Output channels		0

Other data

Gear ratio		63/1
Gear wheel material		plastic
Suppression components		3,5μH, 1nF
Enclosure class		IP 30
Weight		1.25

Remarks

d=for thread forming screws M6 DIN ISO 965-2

Connector layouts

Characteristic curves

Drawing

Shafts

Description

I serration (rolled): no of teeth 28, pitch circle dia 9 mm, tip circle dia 9.6 mm, root circle dia 8.26 mm space width angle 60°- go/no go gauge Frenco 33906

Wiring diagrams
