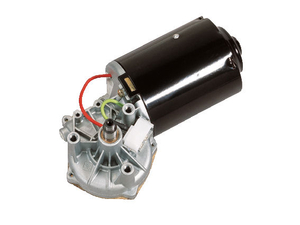

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic, resin bonded fabrics, bronze

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or leads

Sensor -

Thermal protection -

EMC suppression optional

Applications

Industrial:

Machine construction

Design Data

Commutation		Brushed
Direction of rotation		Bi-directional
Bearing type		A:Ball - B:Sleeve

Performance data

Rated voltage [V]	UN	24
Nominal torque [Nm]	MN	8
Nominal speed [min-1]	nN	42.947
Nominal power [W]	PN	35.98
Nominal current [A]	IN	7
Nominal force [kN]	FN	0

Sensor data

Pulses		0
Output channels		0

Other data

Gear ratio		46/1
Gear wheel material		bronze
Suppression components
Enclosure class		IP20
Weight		2.9

Remarks

d=M8x23

Connector layouts

Description

A: spade ends 6.3 x 0.8 (according to DIN 46 244)

Characteristic curves

Drawing

Shafts

Wiring diagrams
