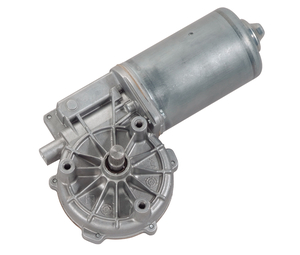

Technical description
Motorhousing deep drawn & corrosion protected
Excitation field permanent magnet
Type of gear mesh worm gear
Gear housing aluminium die cast
Gear wheel material plastic
Lubrication grease
Mechanical interface steel shaft
Electric interface connector
Sensor optional
Thermal protection optional
EMC suppression optional
Applications
Industrial:
Gate Opener, Patient Hoist, Machine construction
Design Data
| Commutation | Brushed | |
| Direction of rotation | Bi-directional | |
| Bearing type | A:Ball - B:Sleeve |
Performance data
| Rated voltage [V] | UN | 24 |
| Nominal torque [Nm] | MN | 6 |
| Nominal speed [min-1] | nN | 34.909 |
| Nominal power [W] | PN | 21.934 |
| Nominal current [A] | IN | 4 |
| Nominal force [kN] | FN | 0 |
Sensor data
| Pulses | 74 | |
| Output channels | 1 |
Other data
| Gear ratio | 74/1 | |
| Gear wheel material | plastic | |
| Suppression components | 4,7μH, 1nF | |
| Enclosure class | IP40 | |
| Weight | 1.73 |
Connector layouts
Description
I Blade terminal ends 6,3 x 0,8 DIN 46 244
II Blade terminal ends 4,8 x 0,8 DIN 46 244
Characteristic curves
Drawing
Shafts
Description
Splines: 10 x 12f (according to DIN 5481)
Wiring diagrams
Description
No description available
I Terminal 3, A
II Terminal 4, +
III Terminal 5, -
