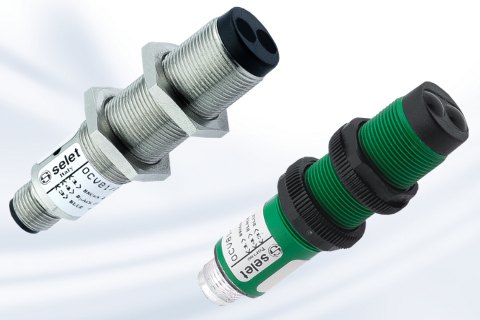

D.C. and A.C. M18 cylindrical series
OCV81/D - M18 cylindrical series - Diffuse type versions
- 18 mm diameters
- Plastic or Metal housing
- Sensing distance: D= 100 mm, D1= 200 mm, D2= 400 mm, D3= 600 mm, D4= 1000 mm
- Versions R with sensing distance adjustable
- Assial (D) or radial (DA) optical versions
- Cable and M12 connector output
- PNP - NPN - 3-wire NO - NC, 4-wire NO + NC and 3-wire a.c. NO - NC version
- 18 mm diameters
- Plastic or Metal housing
- Sensing distance: 2000 mm (3000 mm with Ø80mm reflector)
- Versions R with sensing distance adjustable
- Assial (C) or radial (CA) optical versions
- Cable and M12 connector output
- PNP - NPN - 3-wire NO - NC, 4-wire NO + NC and 3-wire a.c. NO - NC version
- 18 mm diameters
- Plastic or Metal housing
- Sensing distance: d.c. 15 m and a.c. 10 m
- Versions R with sensing distance adjustable
- Assial (P and B) or radial (PA and BA ) optical versions
- Cable and M12 connector output
- PNP - NPN - 3-wire NO - NC, 4-wire NO + NC and 2-wire a.c. NO - NC version
- 18 mm diameters
- Plastic or Metal housing
- Sensing distance: 2000 mm
- Version R with sensing distance adjustable
- Assial optical versions
- Cable and M12 connector output
- PNP - NPN - 3-wire NO and NO/NC versions
- 18 mm diameters
- Plastic or Metal housing
- Sensing distance: 100 mm
- Assial optical versions
- Cable and M12 connector output
- PNP + NPN - 5-wire NO / NC
- 18 mm diameters
- Plastic or Metal housing
- Sensing distance with fi ber optic diffuse FPO/D = 80 mm
- Sensing distance with fi ber optic beam (sender + receiver) FPO/B = 250 mm
- Versions R with sensing distance adjustable
- Cable and M12 connector output
- PNP - NPN - 3-wire NO / NC and 3-wire a.c. NO - NC version
- 18 mm diameters
- Plastic or Metal housing
- Sensing distance: DF= 20 mm, DF50= 35 mm
- Assial optical versions
- Cable and M12 connector output
- PNP - NPN - 3-wire NO and NO / NC
- 18 mm diameters
- Plastic or Metal housing
- High frequency 10 kHz
- Sensing distance: D= 100 mm, D1= 200 mm
- Versions R with sensing distance adjustable
- Assial (D) or radial (DA) optical versions
- Cable and M12 connector output
- PNP - NPN - 3-wire NO - NC, 4-wire NO + NC version
- 18 mm diameters
- Plastic or Metal housing
- High frequency 10 kHz
- Sensing distance: 2000 mm (3000 mm with Ø80mm reflector)
- Versions R with sensing distance adjustable
- Assial (C) or radial (CA) optical versions
- Cable and M12 connector output
- PNP - NPN - 3-wire NO - NC, 4-wire NO + NC and 3-wire a.c. NO - NC version
D.C. and A.C. M18 cylindrical series
OCV81/D - M18 cylindrical series - Diffuse type versions
OCV81/C - M18 cylindrical series - Reflex type with rear reflector
OCV81/B - P - M18 cylindrical series - Beam type ( Sender + Receiver )
OCV81P/C - M18 cylindrical series - Polarized reflex type with rear reflector
OCV81S/D - M18 cylindrical series - Diffuse type with suppression photoelectric versions
OCV81/F - M18 cylindrical series - Optic fiber type versions
OCV81/DF - M18 cylindrical series - Diffuse focused type versions
OCV81K/D - M18 cylindrical series - 10 kHz switching frequency diffuse type versions
OCV81K/C - M18 cylindrical series - 10 kHz switching frequency reflex type with rear reflector
OCV81K/B - P - M18 cylindrical series - 10 kHz switching beam type ( Sender + Receiver )
应用领域：
- 包装机械，例如食品饮料及医药机械
- 物流仓储和输送线，例如包裹和周转箱检测
- 机械制造OEM，机床、陶瓷机械
- 门禁系统和地铁闸机出入口，例如行人、箱包
- 快速消费品行业
- 生产线上食品饮料的检测
- 灌装线透明PET瓶检测
- 物流输送线上托盘和货叉定位
- 电子/汽车装配线零部件检测
- 包装/塑料/玻璃/陶瓷机械
-
在物体定位上的检测应用：
- 存储/输送技术
- 物料搬运技术
- 包装行业
- 交通运输行业
- 汽车行业
- 木材工业
