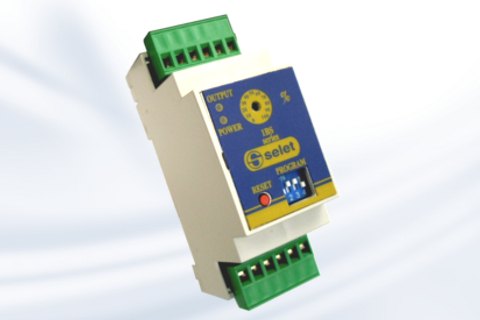

Unit interface for sensor, for internal cabinet

1BS/W - Sensor interface with DIN rail mounting - Changeover relay output

  • Housing for DIN rail mounting
  • Input for Namur, NPN, PNP sensors and mechanical contacts
  • Time delay working with switch-on and switch-off delay programming
  • Power supply: 115 ÷ 230 Vac, 24 Vac, 24 Vdc
  • Changeover relay output
  • Speed control working as overspeed or underspeed control unit
1BS/WF - Sensor interface with DIN rail mounting - Changeover SSR output

  • Housing for DIN rail mounting
  • Input for Namur, NPN, PNP sensors and mechanical contacts
  • Time delay working with switch-on and switch-off delay programming
  • Power supply: 115 ÷ 230 Vac, 24 Vac, 24 Vdc
  • Changeover SSR output
  • Speed control working as overspeed or underspeed control unit
1BS/OW - Sensor interface with DIN rail mounting - Analog or frequency signal converter

  • Housing for DIN rail mounting

  • Analog Inputs 0 ÷ 10V, 0 ÷ 200 V, 4 ÷ 20 mA and current transformers

  • Frequency Input PNP / NPN confi gurable

  • Power supply: 115 ÷ 230 Vac, 24 Vac, 24 Vdc

  • Output 0 ÷ 10 V and 4 ÷ 20 mA
    2BS/TW - Interface for two sensors programmable timing with DIN rail mounting - Two relay output

    • Housing for DIN rail mounting
    • Input for Namur, NPN, PNP sensors and mechanical contacts
    • Programmable timing up to 15 seconds
    • Power supply: 115 ÷ 230 Vac, 24 Vac, 24 Vdc
    • Two relay output


    2BS/ZW - Interface for two sensors with DIN rail mounting - Two relay output

    • Housing for DIN rail mounting
    • Input for Namur, NPN, PNP sensors and mechanical contacts
    • Power supply: 115 ÷ 230 Vac, 24 Vac, 24 Vdc
    • Two relay output



    SS009900 - Interface programmable timing with DIN rail mounting - Two changeover relay outputs - Two display

    • Housing for DIN rail mounting
    • Input for Namur, NPN, PNP sensors, mechanical contacts and for photosensor
    • barrier elements
    • Switch-on and switch-off time delay, programmable up to 99 hours
    • Power supply: 115 ÷ 230 Vac, 24 Vac, 24 Vdc
    • Two changeover relay outputs
    • Double two-digits display for countings and programming step indication
    • Programming for two inputs with two separate outputs
    • Programming for input of photosensor barrier elements
