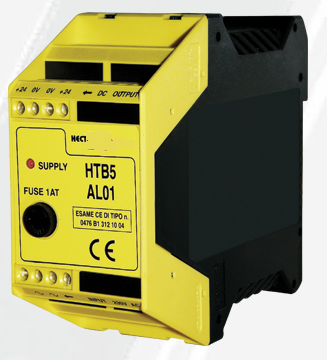

Power supply module EJAL01


Optional power module for safety barriers for Red Beam.Possibilit upon request to have two input voltages to choice between 220Vac and 115Vac. The unit is equipped with internal protections against peaks overvoltage or short-circuits. Do not use the output to 24V for other purposes or for supplying additional equipment. Each power supply must be used for every single barrier.

Conformity:

- 98/37/ "Machinery Directive"
- 89 /336/CEE "Electromagnetic Compatibility Directive"
- 73 23 "Low Voltage Directive"
- EN 61496-1 and IEC 61496-1-2 "electrosensitive Devices protection"


Technical Features:

-Safety Category: level 4
-2 input voltages to request: 115 and 220Vac
-2 separate outputs to 24 Vdc
-Led supply
-Fuse for protection against 1
-Working temperature: -10 °C to +60 °C
-The degree of protection IP20
