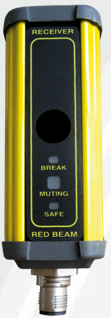

EJHTBLM5 - 17mt - Espe Type 4 - Basic



Safety light curtain, protection category 4 with two relay outputs to separate contacts. Reduced-size model. Thanks to relays and CPUS integrated inside the barrier there is no need for additional external modules additional. Model conforms to current standards in force european and international

Compliance:

- 2006/95/EC Low Voltage Directive.
- IEC/EN 61496-1 and. 2.1 And IEC/TS 61496-2 and. 2 Devices electrosensitive protective.
- EN ISO 13849-1 Safety of machinery - related parts of control systems security - general principles for the design.
- IEC/EN 62061 functional safety of electrical systems, electronic, and programmable electronic for the control systems of the machines.
- IEC 61508 functional safety of electrical systems and electronic programmable electronic security systems

Technical Features:

-Power: 24Vdc ± 20%
-Absorption: 0.4 but Max
-Operating Temperature: -10 °C to +60 °C
-The degree of protection: level 4
- maximum capacity: from 5m to 17m
- Automatic Operation
-2 Relay outputs NO with separate contacts
-muting function
-Function of In-Test
-Function to restart
-Led signalling barrier status
-Connection to connectors M12 5/8 Poly
-response time: >50ms
-The degree of protection IP65 Resolution,

Rays of protection:

- resolution 1,2,3,4,5 rays for detecting the presence of the body area

Useful heights available:

- 80 mm              - 900 mm             - 1650 mm
- 300 mm            - 1050 mm            - 1800 mm
- 450 mm            - 1200 mm            - 1950 mm
- 600 mm            - 1350 mm
- 750 mm            - 1500 mm

Ideal for the protection of:

- robotic Areas
- assembly lines
- palletizers

冲压机械、剪切设备、金属切削设备、自动化装配线、自动化焊接线、机械传送搬运设备
