EJHTBL5 - 17mt - Espe Type 4 - Full Optional



Safety light curtain, protection category 4, with a display for signalling the operating state, graduated scale for centering and viewing of the spokes connected or not, with two relays output to separate contact. Model full optional available with all functions muting, blankin, restart and programming CPU. Thanks to the relay and the CPU integrated inside the barrier there is no need for additional external modules additional. Model conforms to current standards in force european and international.

Conformity:

- 2006/42/EC Machinery Directive.
- 2004/108/EC Directive Electromagnetic Compatibility.
- 2006/95/EC Low Voltage Directive.
- IEC/EN 61496-1 and. 2.1 And IEC/TS 61496-2 Edition 2 Devices electrosensitive protective.
- EN ISO 13849-1 Safety of machinery - Related parts of control systems security - General principles for the design.
- IEC/EN 62061 Functional safety of electrical systems, electronic, and programmable electronic for the control systems of the machines.
- IEC 61508 Functional safety of electrical systems and electronic programmable electronic security systems.

Technical features:

-Power: 24Vdc ± 20%
-Absorption: 0.4 mA Max
-Operating Temperature: -10 °C to +60 °C
-The degree of protection: level 2
-Maximum capacity: 5m to 17m
-3 methods of operation: Automatico-Semiautomatico -Manual
-2 relays output with NO separate contacts
-Muting function and blankin (fixed or floating), selectable
-Function EDM
-Function of In-Test
-Function to restart
-Programming Function Display

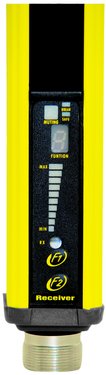

-Display to 7 segments for the signaling and the functional diagnosis
-Bar to 10 segments for centering and the state of reception of the beams
-Led signalling barrier status
-Connection to connectors M23 to 16 poles for the Receiver, M12 5 poles for the Emitter
-Response time: >30ms
-Degree of protection IP65


Resolution, rays of protection:

- resolution 14-20 mm for the detection of the fingers.
- Resolution 30-35 and 40 mm for the detection of the hands.
- Resolution 50 mm for the detection of the presence of the body area.

Useful heights available:

- 150 mm            - 900 mm              - 1650 mm
- 300 mm            - 1050 mm            - 1800 mm
- 450 mm            - 1200 mm            - 1950 mm
- 600 mm            - 1350 mm
- 750 mm            - 1500 mm


Ideal for protection of:

- Presses
- Die Cutters
- Punching
- Cutters and shears
- Assembly lines
- Palletizers


冲压机械、剪切设备、金属切削设备、自动化装配线、自动化焊接线、机械传送搬运设备
