安全光幕5mt - Espe Type 4 订购编号:EJHTBS5
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

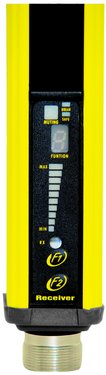

EJHTBS5 - 5mt - Espe Type 4 - Full Optional
Safety light curtain, protection category 4, with a display for signalling the operating state, graduated scale for centering and viewing of the spokes connected or not, with relay output to separate contact. Model full optional available with all functions muting, blankin, restart and programming CPU. Thanks to the relay and the CPU integrated inside the barrier there is no need for additional external modules additional. Model conforms to current standards in force european and international.
Conformity:
-
- 2004/108/EC Directive Electromagnetic Compatibility.
- 2006/95/EC Low Voltage Directive.
- IEC/EN 61496-1 and. 2.1 And IEC/TS 61496-2 Edition 2 Devices electrosensitive protective.
- EN ISO 13849-1 Safety of machinery - Related parts of control systems security - General principles for the design.
- IEC/EN 62061 Functional safety of electrical systems, electronic, and programmable electronic for the control systems of the machines.
- IEC 61508 Functional safety of electrical systems and electronic programmable electronic security systems.
Technical features:
-Power: 24Vdc ± 20%
-Absorption: 0.4 mA Max
-Operating Temperature: -10 °C to +60 °C
-The degree of protection: level 2
-Maximum capacity: 0.1m to 5m
-3 methods of operation: Automatico-Semiautomatico -Manual
-2 relays outputs with NO separate contacts
-Muting function and blankin (fixed or floating), selectable
-Function EDM
-Function of In-Test
-Function to restart
-Programming Function Display
-Display to 7 segments for the signaling and the functional diagnosis
-Bar to 10 segments for centering and the state of reception of the beams
-Led signalling barrier status
-Connection to connectors M23 to 16 poles for the Receiver, M12 5 poles for the Emitter
-Response time: >30ms
-Degree of protection IP65
Resolution, rays of protection:
- 1,2,3,4 beams resolution for detecting the presence of the body in the area
Useful heights available:
- 150 mm - 900 mm - 1650 mm
- 300 mm - 1050 mm - 1800 mm
- 450 mm - 1200 mm - 1950 mm
- 600 mm - 1350 mm
- 750 mm - 1500 mm
Ideal for protection of:
- Presses
- Die Cutters
- Punching
- Cutters and shears
- Assembly lines
- Palletizers
