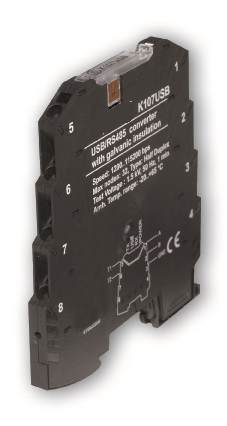

EK107USB

DIN rail RS485/USB aynchronous serial converter

EK107USB is an interface able to implement a RS485 serial port by using a PC USB port. The available drivers will recognize the serial interface as a standard serial port; so the use of the product is directly allowed through any software able to communicate with the standard serial ports of the operating system (COM1, COM2, etc). RS485 and USB ports are isolated from each other at 1500 V

Order code :		EK107USB
Description:		DIN rail RS485/USB aynchronous serial converter
Power supply:		powered by USB port
Max consumption:		60 mA
Operating systems:		Windows 98, 2000, XP; Windows 7; Linux 2.24.0 or more recent
Compatibility:		USB 1.1 and 2.0
Dimensionis:		6,2x93,1x102,5 mm
Accessories:		Connection cable (USB side) and CD driver
