Temperature converters:
|
EK109PT: |
|
Pt100 to DC current / voltage isolator converter |
|
EK109PT-HPC: |
|
Pt100 to DC current / voltage isolator converter(high precision) |
|
EK109PT1000: |
|
Pt1000 to DC current / voltage isolator converter |
|
EK120RTD: |
|
Pt100, Ni100 to DC current converter (loop powered) |
|
EK109TC: |
|
TC to DC current / voltage isolator converter with settable threshold |

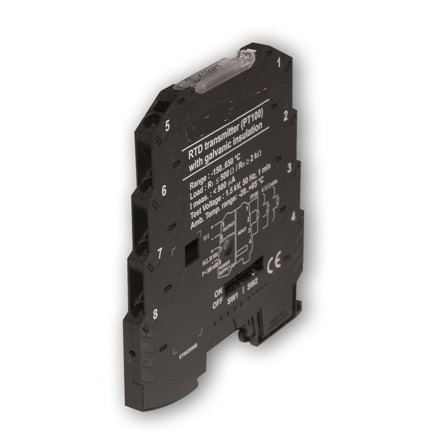

EK109PT
Pt100 converter
EK109PT is a converter for Thermoresistance PT100 with 2,3,4 wires and provides a mA/V standard output signal. It’s completely confi gurable through dip switches. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas.
|
Order code : |
|
EK109PT |
|
Description: |
|
Pt100 converter |
|
Power supply: |
|
19,2..30 Vdc |
|
Input: |
|
Nr 1 channel, Pt100, -150...+650 °C, min span 50°C |
|
Output: |
|
Nr 1 channel, voltage (0..10 / 10..0 / 0..5 / 1.5 V) and current (4..20 / 20..4 / 0..20 / 20..0 mA) |
|
Isolation: |
|
1,5 kV (50 Hz, 1 min) |
|
Dimensions (w x h x d): |
|
6,2 x 93,1 x 102,5 mm |
EK109PT-HPC
Pt100 high-precision converter
K109PT-HPC is an high performance converter for Thermoresistance PT100 with 2,3,4 wires and provides a mA/V standard output signal. The max admitted error is lower than K109PT because reported to a smaller range. It’s completely confi gurable through dip switches. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas.
|
Order code : |
|
EK109PT-HPC |
|
Description: |
|
Pt100 high-precision converter |
|
Input: |
|
Pt100 2, 3, 4 wire (EN 60751 – ITS90), 200..+160°C, min span 20°C |
|
Output: |
|
current 0/4..20, 20..4/0 mA; voltage 0..5/10, 10..0, 1..5 Vdc |
|
Max consumption: |
|
21 mA |
|
Isolation: |
|
3 way, 1,5 kVac |
|
Resolution: |
|
14 bit |
|
Precision class: |
|
0,1% |
|
Power supply technique: |
|
direct on spring cage terminale or distributed with K-BUS connector |
|
Dimensions: |
|
6,2 x 93,1 x 102,5 mm |
EK109PT1000
Pt1000 converter
EK109PT1000 is a converter for Thermoresistance PT1000 with 2,3,4 wires and provides a mA/V standard output signal. It’s completely configurable through dip switches. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas.
|
Order code : |
|
EK109PT1000 |
|
Description: |
|
Pt1000 converter |
|
Input: |
|
Pt1000 (EN 60751/A2 – ITS90), -200..+210 °C, min span 30° C |
|
Output: |
|
Current 0/4..20, 20..4/0 mA; voltage 0..5/10, 10..0, 1..5 Vdc |
|
Power Supply: |
|
19,2..30 Vdc |
|
Max consumption: |
|
21 mA |
|
Isolation: |
|
3 way, 1,5 kVac |
|
Resolution: |
|
14 bit |
|
Accuracy class: |
|
0,1% |
|
Power supply technique: |
|
Direct on spring cage terminale or distributed with K-BUS connector |
|
Dimension: |
|
6,2 x 93,1 x 102,5 mm |
EK109TC
Thermocouple converter with settable threshold
EK109TC is a converter for Thermocouples TCs (J, K, E, N, S, R ,B,T) and provides a mA/V standard output signal. Beside available there is a confi gurable threshold (relay) that may generate an alarm or may be utilized like a thermostat. It’s completely confi gurable through dip switches/trimmer. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas.
|
Order code : |
|
EK109TC |
|
Description: |
|
Thermocouple converter with settable threshold |
|
Input: |
|
Thermocouple type B,E,J,K,R,S,T,N (ITS-90), min span 100 °C |
|
Output: |
|
current 0/4..20, 20..4/0 mA; voltage 0..5/10, 10..0, 1..5 Vdc |
|
Power Supply: |
|
19,2..30 Vdc |
|
Auxiliary output: |
|
SSR for settable alarm trip |
|
Max consumption: |
|
24 mA |
|
Isolation: |
|
1,5 kVac, 3 way |
|
Resolution: |
|
14 bit |
|
Precision class: |
|
0,1% |
|
Power supply technique: |
|
direct on spring cage terminale or distributed with K-BUS connector |
|
Dimensions: |
|
6,2 x 93,1 x 102,5 mm |
EK120RTD
Pt100, Ni100 loop powered converter
EK120RTD is a converter for Thermoresistance PT100/Ni100 with 2,3,4 wires and convert / isolate it into 4..20mA loop powered signal. It’s completely confi gurable through dip switches or PC software. The output signal is not isolated from the input one.
|
Order code : |
|
EK120RTD |
|
Description: |
|
Pt100, Ni100 loop powered converter |
|
Input: |
|
Pt100 (EN 60751/A2 – ITS90), -200..+650 °C, Ni100 (-60..+250 °C min span 20°C |
|
Output: |
|
current 4..20, 20..4 mA |
|
Max consumption: |
|
24 mA |
|
Resolution: |
|
16 bit |
|
Precision class: |
|
0,1% or 0,1°C |
|
Power supply range: |
|
5..30 Vdc |
|
Dimensions: |
|
6,2 x 93,1 x 102,5 mm |
