ES203T

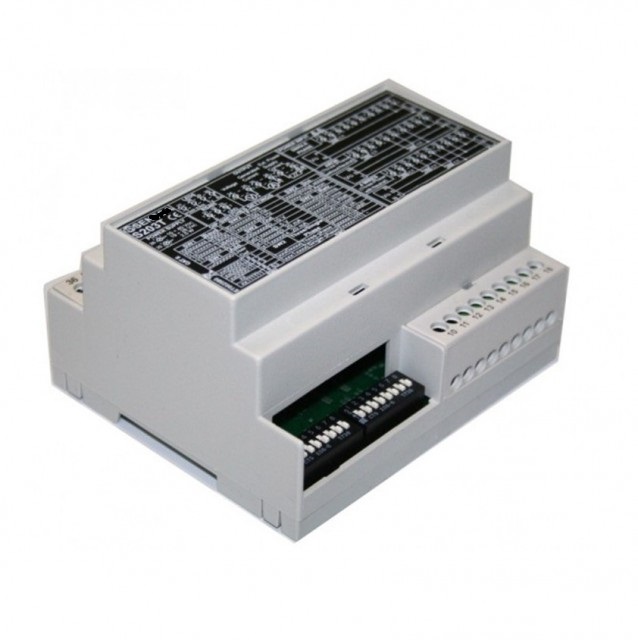

Advanced triple phase network analyzer, 100 mA input



product information

Order code :   ES203T
Description:   Advanced triple phase network analyzer, 100 mA input
Power supply:   10..40 Vdc; 19..28 Vac (50-60 Hz)
Input:   Voltage up to 600 Vac, current up to 100 mA
Measure variable:   Vrms, Irms, Watt, Var, VA, frequency, cosfi, power
Analog output:   voltage / current
Re-transmission error:   0,1%
Accuracy:   0,2%
Connection:   Single-phase, aron triple-phase, 4-wire triple-phase
Accessories:   Current transformers TA15, TA25, TA100, accuracy 0,1% (1/1000); 15, 25, 100 A
