Model ES203RC-D is a complete three-phase network analyzer,with display, that can be use only with Rogowski’s coil, up to 600Vac voltage range, max current up to 1000 A connected to the inputs.The instrument provides all the following electrical measurable variables: Vrms, Irms, Watt, VAR, VA, Frequency, Cosfi and Active Energy. All measurements given above (except frequency) are available both single-phase and threephase. Measurements are read through serial communication both in floating point and normalized format (except Frequency and Active Energy).It is possible the analog retransmission of any Vrms, Irms, Watt and Cos quantity either single phase or threephase, or any phase chosen (by specific display or MODBUS registry).

ES203TA is a complete three-phase network analyser suited for use with up to 600 Vac voltage range and up to 5A current range. The instrument provides all the following electrical measurable variable: Vrms, Irms, Watt, Var, Va, Frequency, Cosφ. Measurements are availables through Modbus serial communication or through analogue retransmission (ma or V). A 3-way galvanic isolation among Power supply // input // RS485 circuits assures the integrity of your datas.

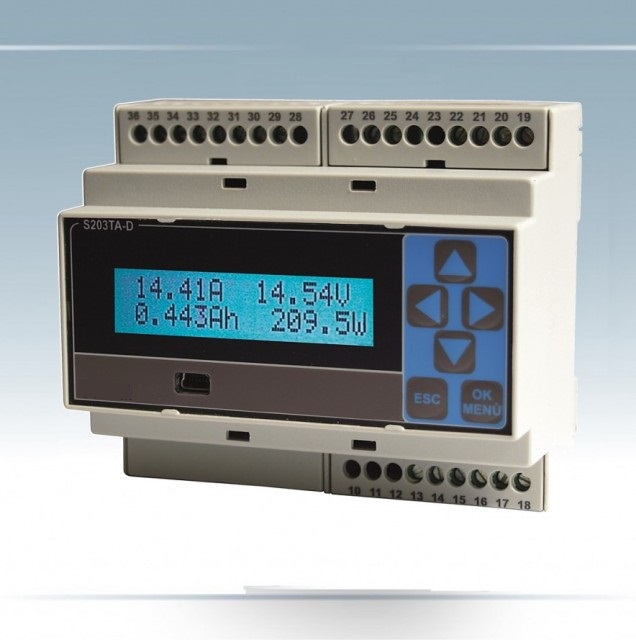

Model ES203TA-Dis a complete three-phase network analyzer,with display, suited for use with up to 600Vac voltage range, and max current equal to 5A connected to the inputs.The instrument provides all the following electrical measurable quantities: Vrms, Irms, Watt, VAR, VA, frequancy, Cosφ. All measurements given above (except frequency) are available both single-phase and three-phase. Measurements are read through serial communication both in floating point and normalized format (except Frequency and Active Energy).It is possible the analog retransmission of any Vrms, Irms, Watt and Cos quantity either single phase or three-phase, or any phase chosen (by specific display or MODBUSregistry)

EZ203 is a complete single-phase network analyser ( si scrive analyzer ) suited for use with up to 500 Vac voltage range and 5A current. The instrument provides all the following electrical measurable quantities Vrms, Irms, Watt, VAR, frequency, Energy, cosfi. Measurements are read through serial communication and both floating point and normalised format (except for energy). The DIP-switches (or Modbus registers) can be set for the analogue retransmission of any Vrms, Irms, Watt, Var, Frequency and Cosfi quantity.
