Description

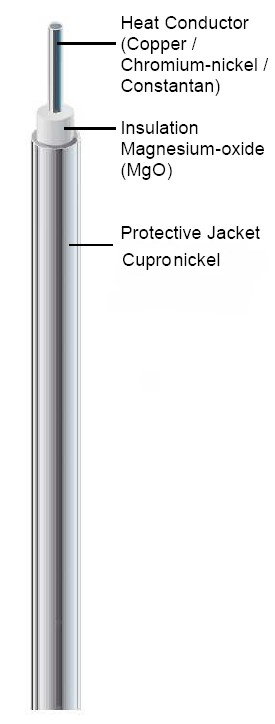

The mineral-insulated heating cable ISM is due to their structure very sturdy and safe for use in industrial and hazardous environments. The different types of Jackets are highly resistant to chemical attack. The specific resistance of ISM will cause the power output increases or decreases by changing the length of the heating cable. The heating cable will be soldered or laser-welded with connection sleeves to special cold-ends (Standard length 1,2m). Depending on the application and temperature requirements, various outer jackets made of stainless steel, Cupronickel or Incoloy are available.
Technische Daten ISMCuNi

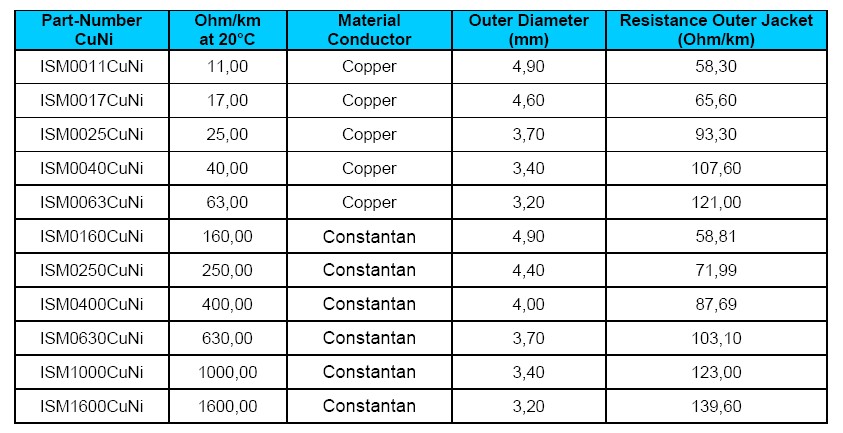

- Resistance range: see table
- Outer sheath: CuNi
- Maximum temperature switched on: 400°C
- Maximum temperature switched off: 400°C
- Minimum installation temperature: –20°C (–4 F)
- Voltage: 500 VAC
- Test voltage: > 1,2kV
