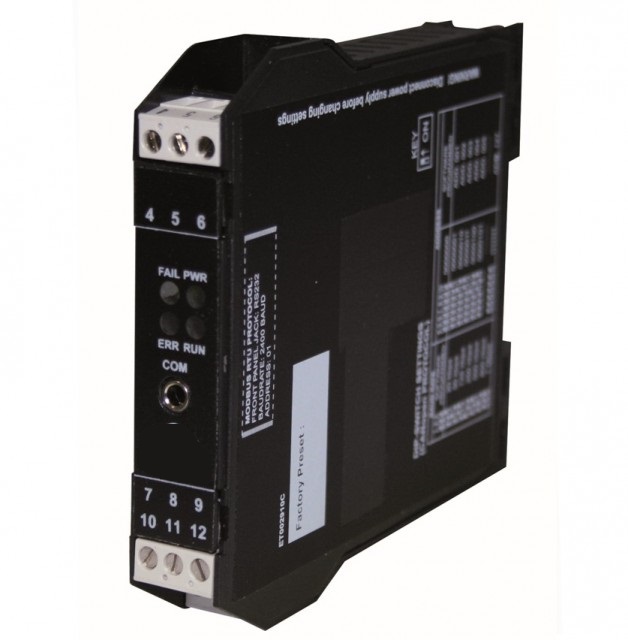

I/O analog modules:
EZC-8AI:   8 CH analog input CANopen module
EZC-3AO:   3 CH analog output CANopen module
EZC-4RTD:   4 Ch RTD (P100, Ni100, Pt500, Pt1000) input CANopen module
EZC-8TC:   8 CH Thermocouple (J,K,E,N,S,R,B,T) CANopen module
EZC-SG:   1 CH strain gauge CANopen module

EZC-3AO

3 CH analog output (mA, V) CANopen module



EZC-3AO is used to get N.3 analogue outputs (mA or V) from a CANopen system. The standard can be either mA (0..20mA / 4..20mA) or V (-10..10 V, 0..10 V or 2..10 V). A 3-way galvanic isolation among Power supply // input // RS485 circuits assures the integrity of your datas
product information
Order code :   EZC-3AO
Description:   3 CH analog output (mA, V) CANopen module
Power Supply:   10..40 Vdc, 19..28 Vac
Max consumption:   2,5 W
Isolation:   1,5 kVac (5 way)
Accuracy:   0,05%
Resolution:   14 bit
Channels:   3
Voltage range:   ±10 V
Current range:   0..20, 4..20 mA
RPDO (0-100% output):   < 20 ms
Operating temperature:   -10..+65°C
Dimension:   35 x 100 x 112 mm

EZC-4RTD

4 Ch RTD (P100, Ni100, Pt500, Pt1000) input CANopen module

EZC-4RTD is an interface for RTD sensors (PT100, PT1000, PT500, Ni100) with 2,3 or 4 wires. The number of input is 4 and the each input is independent from each other. It’s a CANopen device and can be connected into a CANopen network. A 6-way galvanic isolation among Power supply // inputs // RS485 circuits assures the integrity of your datas (each input channel is isolated from the other circuits).
product information
Order code :   EZC-4RTD
Description:   4 Ch RTD (P100, Ni100, Pt500, Pt1000) input CANopen module
Power Supply:   10..40 Vdc, 19..28 Vac
Max power consumption:   1 W
Isolation:   1,5 kVac (6-way)
Accuracy:   0,05%
Resolution:   14 bit
Channels:   4
Pt100 range:   -200..+650°C
Pt500 range:   -200..+750°C
Pt1000 range:   -200..+210°C
Ni100 range:   -60..+250°C
Analog conversion response time:   < 20 ms
Operating temperature:   -10..+65°C
Dimension:   35 x 100 x 112 mm

EZC-8AI

8 CH analog input (mA, V) CANopen module



EZC-8AI is used to interface analog inputs (Voltage or current, also with bipolar range) with CANopen system. The modules is able to supply all 8 current loops at the same time, this is very useful for 2-wire sensors because the wiring does not need an external power supply. A 6-way galvanic isolation among Power supply // input (couples) // RS485 circuits assures the integrity of your datas.
product information
Order code :   EZC-8AI
Description:   8 CH analog input (mA, V) CANopen module
Power Supply:   10..40 Vdc, 19..28 Vac
Max consumption:   5 W
Isolation:   1,5 kVac (6 ways)
Analog conversion response time:   20 ms (4 channels); 40 ms (8 channels)
Accuracy:   0,05%
Resolution:   15 bit
Power transducers:   Up to 8 sensors (max 22 mA)
Channels:   8
Voltage range:   ±10 V
Current range:   0..20, 4..20 mA
Operating temperature:   -10..+65°C
Dimension:   35 x 100 x 112 mm

EZC-8TC

8 CH Thermocouple (J,K,E,N,S,R,B,T) CANopen module

EZC-8TC is an interface for Thermocouple sensors (J, K, E, N, S, R, B ,T) and generic sensor with mV as standard output signal. The number of input is 8 and each input is independent from each other. It’s a CANopen deviced and can be connected into a CANopen network. A 6-way galvanic isolation among Power supply // input // RS485 circuits assures the integrity of your datas (each couple of channels is isolated from the other circuits).
product information
Order code :   EZC-8TC
Description:   8 CH Thermocouple (J,K,E,N,S,R,B,T) CANopen module
Power Supply:   10..40 Vdc, 19..28 Vac
Max consumption:   1 W
Isolation:   1,5 kVac (6 vie)
Accuracy:   0,1%
Resolution:   15 bit
Channels:   8
Thermocouple type:   J,KE,N,S,R,B,T (EN 60584-1)
Span:   -10,1..81,4 mV
Impedance:   10 MΩ
Analog conversion response time:   < 40 ms
Operating temperature:   -10..+65°C
Dimension:   35 x 100 x 112 mm

EZC-SG

1 CH strain gauge CANopen module

EZC-SG is a strain gauge signal converter. Measurements taken using the 6-wires or 4-wires technique are available through CANopen protocol. Sensitivity from 1 to 64mV/V, settable by DIP switch for integer values, via software for real/integer values. Stable weight indication via CANopen/digital output. Remote writing of the tare in volatile and/or non-volatile memory by digital input/CANopen.
product information
Order code :   EZC-SG
Description:   1 CH strain gauge CANopen module
Power Supply:   10..40 Vdc, 19..28 Vac
Max consumption:   1 W
Isolation:   1,5 kVac (3-way)
Accuracy:   0,01%
Resolution:   24 bit
Load cell analog input:   Voltage supply 5 Vdc, min impedance 87 Ω (350 Ω, 4 load cells), 4 or 6 wire connection, sensitivity 1..64 mV
Digital input:   Tare calibration / span
Digital output:   Stable weight / limit switch
Response time:   7 ms
Operating temperature:   -10..+65°C
Dimension:   35 x 100 x 112 mm
