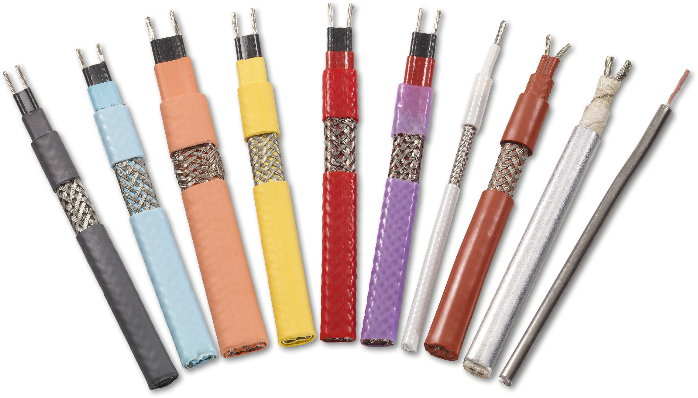

• Tapes

Selflimiting/selfregulating

• up to 85°C   ILL
•


  Description

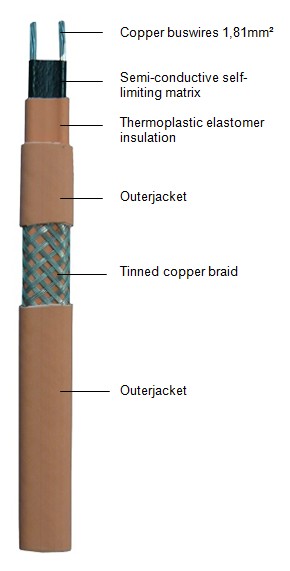

  Quintherm ILL is a light industrial/commercial grade self- regulating heating tape that can be used for freeze protection or temperature maintenance of pipework and vessels in the construction and refrigeration industries. It can be cut-to-length at site and exact piping lengths can be matched without any complicated design considerations. ILL is approved for use in non-hazardous, hazardous and corrosive environments to world-wide standards. Its self-regulating characteristics improve safety and reliability. ILL will not overheat or burnout, even when overlapped upon itself. Its power output is self-regulated in response to the pipe temperature. The installation of Quintherm ILL is quick and simple and requires no special skills or tools. Termination, splicing and power connection components are all provided in convenient kits.

  Technical Data ILL

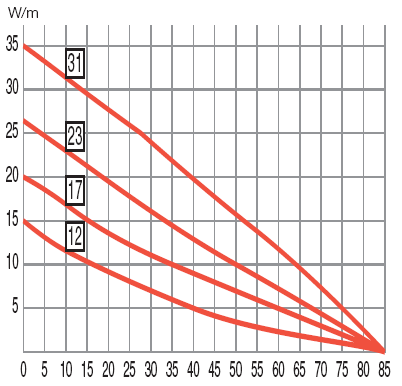

• Power output 12,17, 23, 31, 40(ILLw) W/m at 10°C
• Outer sheath Polyolefin or Fluorpolymer
• Maximum operating temperature switched on 85°C (185°F)
• Maximum temperature switched off  85°C (185°F)
• Minimum installation temperature  –40°C (–40°F)
• Temperature class T6(bis 31W/m); T4(40W/m)
• Voltages110 – 120VAC, 220 – 277VAC
• Special voltage 24V, 12V
• Maximum braiding resistance  <18,2 Ω/km
•
• up to 100°C  ILM
•


  Description

  Quintherm ILM(w) is an industrial grade self-regulating heating tape that can be used for freeze protection or temperature maintenance of pipework and vessels up to 100°C. It can be cut to length on site and exact piping lengths can be matched without any complicated design considerations.ILM(w) is approved for use in non-hazardous and hazardous areas and corrosive environments according to world wide standards. Its self-regulating characteristics improve safety and reliability. ILM will not overheat or burnout, even when overlapped upon itself. It´s power output is self-regulated in response to the pipe temperature. The installation of Quintherm ILM(w) is quick and simple and requires no special skills or tools. Termination, splicing and power connection components are all provided in convenient kits.

  Technical data ILM(w)

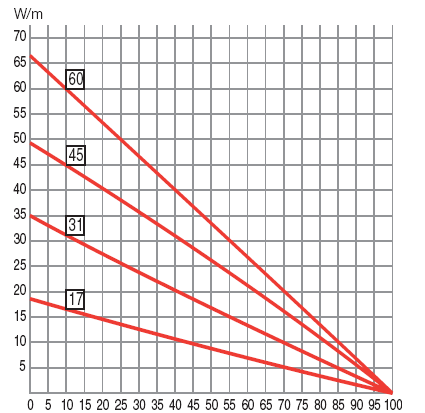

• Power output: 17, 31, 45, 60 W/m bei 10°C
• Outer sheath:  Polyolefin or Fluorpolymer
• Maximum temperature switched on: 100°C (212°F)
• Maximum temperature switched off:  100°C (212°F)
• Minimum installation temperature  –40°C (–40°F)
• Temperature class  T4
• Voltage 110 – 120VAC, 220 – 277VAC
• Maximum braiding resistance<18,2 Ω/km
•
• up to 150°C  ILH
•




  Description

  Quintherm ILH is an industrial grade, self-regulating heating tape that can be used for applications ranging from process heating or maintenance of temperatures up to 150°C. It can be cut to length on site and exact piping lengths can be matched without any complicated design considerations. ILH is approved for use in non-hazardous, hazardous and corrosive environments to world-wide standards. Its self-regulating characteristics improve safety and reliability. ILH will not overheat or burnout, even when overlapped upon itself. Its power output is self-regulated in response to the pipe temperature. The installation of Quintherm ILH is quick and simple and requires no special skills or tools. Termination, splicing and power connection components are all provided in convenient kits.

  Technical data ILH

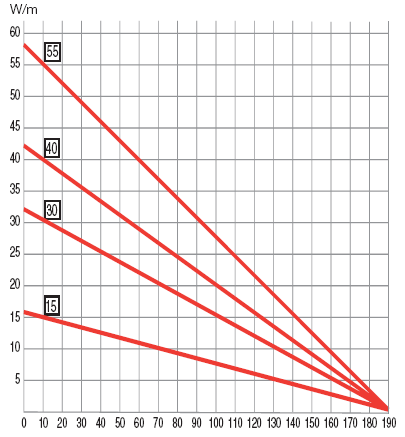

• Power output: 15, 30, 40, 55 W/m bei 10°C
• Outer sheath:  Fluorpolymer
• Maximum temperature switched on: 150°C (212°F)
• Maximum temperature switched off:  200°C (212°F)
• Minimum installation temperature:  –30°C (–22°F)
• Temperature class:  T3
• Voltage:   220 – 277VAC
• Maximum braiding resistance:  <18,2 Ω/km
•
• up to 150°C  ILHS
•




  Description

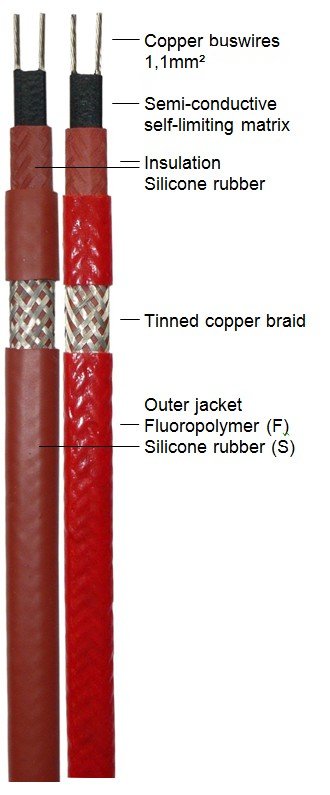

  Quintherm ILHS is an industrial grade, self-regulating heating tape that can be used for applications ranging from process heating or maintenance of temperatures up to 200°C. It can be cut to length on site and exact piping lengths can be matched without any complicated design considera-tions. ILHS is approved for use in safe, hazardous and corrosive environments to world-wide standards. Its self-regulating characteristics improve safety and relia-bility. ILHS will not overheat or burnout, even when over-lapped upon itself. Its power output is self-regulated in response to the pipe temperature. The installation of Quintherm ILHS is quick and simple and requires no special skills or tools. Termination, splicing and power connection components are all provided in convenient kits

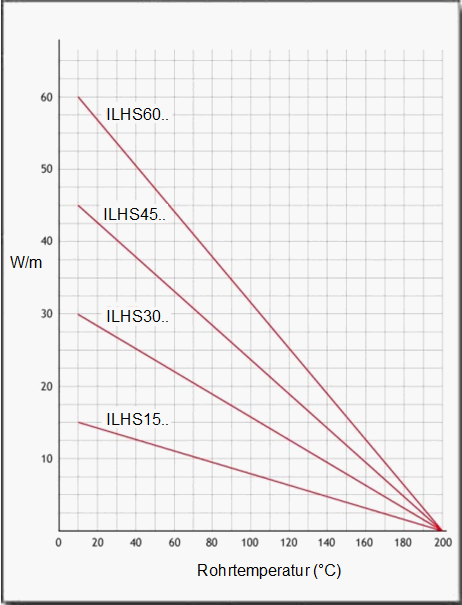

  Technical data ILHS (Silicone outer sheath)

• Power output: 15, 30, 45, 60 W/m bei 10°C
• Outer sheath:  Silicone or Fluorpolymer
• Maximum temperature switched on: 150°C (212°F)
• Maximum temperature switched off:  200°C (212°F)
• Minimum installation temperature:  –40°C (–40°F)
• Temperature class  T3
• Voltage   208– 277VAC
• Maximum braiding resistance:  <18,2 Ω/km
•
• up to 200°C  ILS
•




  Description

  Quintherm ILS is an industrial grade, self-regulating heating tape that can be used for applications ranging from process heating or maintenance of temperatures up to 200°C. It can be cut to length on site and exact piping lengths can be matched without any complicated design considerations. ILS is approved for use in non-hazardous, hazardous and corrosive environments to world-wide standards. Its self-regulating characteristics improve safety and reliability. ILS will not overheat or burnout, even when overlapped upon itself. Its power output is self-regulated in response to the pipe temperature. The installation of Quintherm ILS is quick and simple and requires no special skills or tools. Termination, splicing and power connection components are all provided in convenient kits.

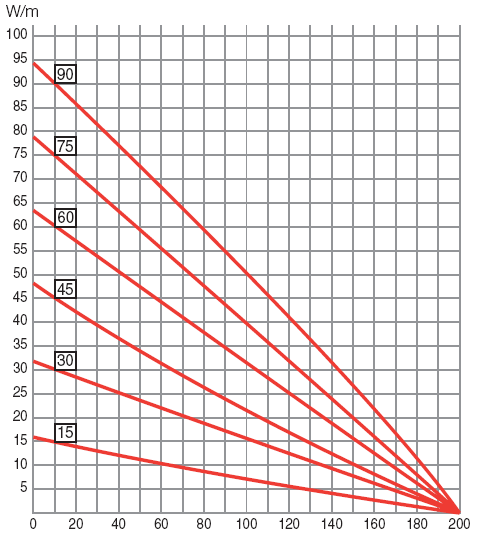

  Technische Daten ILS

• Power output:  15, 30, 45, 60 , 75, 90 W/m bei 10°C
• Outer sheath:  Fluorpolymer
• Maximum temperature switched on: 200°C (212°F)
• Maximum temperature switched off:  250°C (212°F)
• Minimum installation temperature:  –40°C (–40°F)
• Temperature class:  T3 / T2
• Voltage:   220– 240VAC
• Maximum braiding resistance:  <18,2 Ω/km

Zone heater

• up to 200°C, 1,5mm² IPL
•




  Description

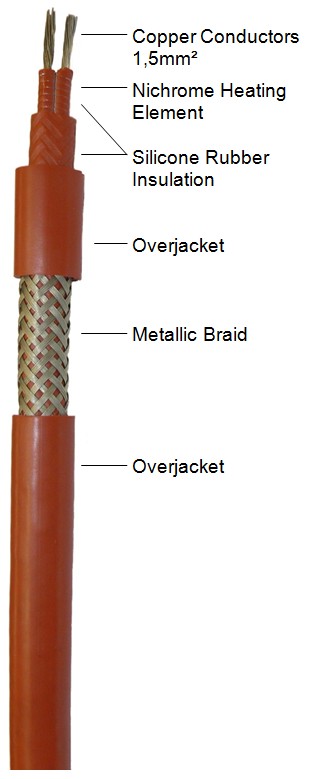

  IPL is a constant wattage heating tape that can be used for freeze protection or maintenance of process temperatures in pipework and vessels. It can be cut-to-length at site and can replace mineral insulated (MI) cables for applications where the cut-to-length feature or field fabricated heating cable is preferred. IPL is approved for use in non-hazardous areas. Because of the special construction with “heating zones�? no additional cold lead is needed. From cut point to the next heating wire bonding point the heating cable remains cold and serves as cold lead. The installation of IPS heating tape is quick and simple and requires few special skills or tools. Termination and power connection components are all provided in convenient kits.

  Technical data IPL

• Power output: 6,5, 13, 23, 33, 50 W/m temperature independent
• Outer sheath:  Silicone or Fluorpolymer

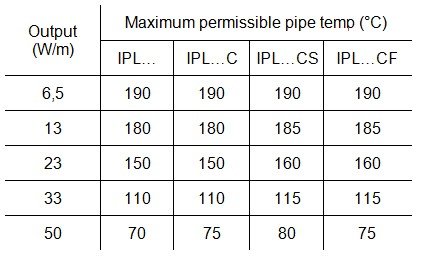

• Maximum temperature switched on:  s. Tabelle
• Maximum temperature switched off: 200°C
• Minimum installation temperature:  –80°C (–112°F)
• Voltage   220– 240VAC (other voltages.. see data sheet)
• Maximum braiding resistance  <18,2 Ω/km
•
• up to 200°C 2,5mm² IPMM
•




  Description

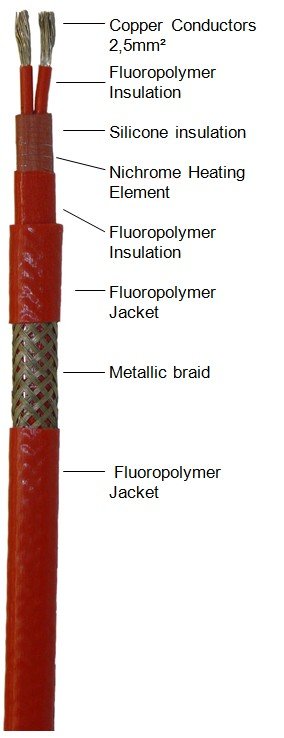

  IPMM is a constant wattage heating tape that can be used for freeze protection or maintenance of process temperatures in pipework and vessels. It can be cut-to-length at site and can replace mineral insulated (MI) cables for applications where the cut-to-length feature or field fabricated heating cable is preferred. IPMM is approved for use in non-hazardous, and hazardous areas to world-wide standards. Because of the special construction with “heating zones�? no additional cold lead is needed. From cut point to the next heating wire bonding point the heating cable remains cold and serves as cold lead. The installation of IPS heating tape is quick and simple and requires few special skills or tools. Termination and power connection components are all provided in convenient kits.

  Technische Daten IPMM

• Power output: 6.5, 13, 23, 33 W/m temperaturunabhängig
• Outer sheath:  Fluorpolymer

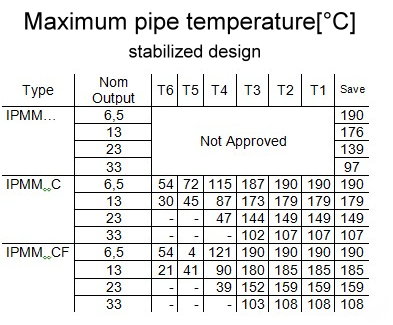

• Maximum temperature switched on:  s. Tabelle
• Maximum temperature switched off:  200°C
• Minimum installation temperature:  –40°C (–40°F)
• Voltage   220– 240VAC (other voltages see data sheet)
• Maximum braiding resistance:  <18.2 Ω/km
• up to 285°C IPH
•




  Description

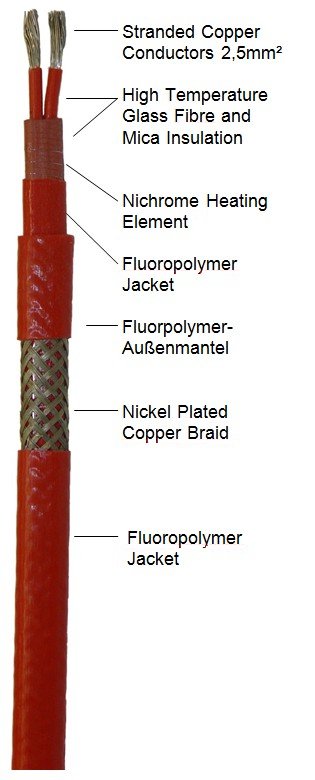

  Quintherm IPH is a constant wattage heating tape that can be used for freeze protection or maintenance of process temperatures in pipework and vessels. It can be cut-to-length at site and can replace mineral insulated cables for applications where the cut-to-length feature or field fabricated heating cable is preferred. Quintherm IPH is approved for use in hazardous, safe and corrosive environments. Because of the special construction with heating zones no additional cold lead is required. From cut point to the next heating wire bonding point the heating cable remains cold and serves as a cold lead. The installation of IPH heating tape is quick and simple and requires few special skills and tools. Termination and power connection components are provided in convenient kits.

  Technical data IPH

• Power output: 10, 30, 50, 70 W/m temperaturunabhängig
• Outer sheath:   Fluorpolymer

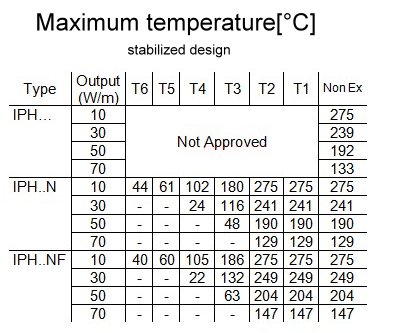

• Maximum temperature switched on:  s. Tabelle
• Maximum temperature switched off:  285°C
• Minimum installation temperature:  –40°C (–40°F)
• Voltage:   220– 240VAC (other voltages see data sheet)
• Maximum braiding resistance:  <18,2 Ω/km
•
• up to 425°C IPS
•




  Description

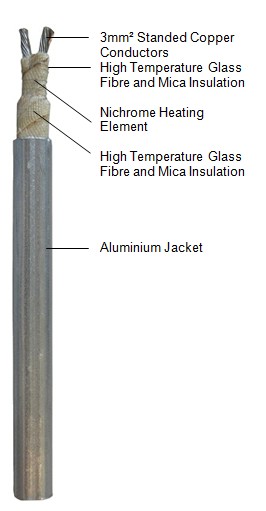

  IPS is a constant wattage heating tape that can be used for freeze protection or maintenance of process temperatures in pipework and vessels. It can be cut-to-length at site and can replace mineral insulated (MI) cables for applications where the cut-to-length feature or field fabricated heating cable is preferred. IPS is approved for use in non-hazardous, and hazardous areas to world-wide standards. Because of the special construction with “heating zones﾿ no additional cold lead is needed. From cut point to the next heating wire bonding point the heating cable remains cold and serves as cold lead. The installation of IPS heating tape is quick and simple and requires few special skills or tools. Termination and power connection components are all provided in convenient kits. IPS is jacketted in a continuous aluminium extrusion for maximum mechanical strength, even after severe process upsets.

  Technical data IPS

• Power output: 15, 30, 50, 100, 150 W/m temperature independent
• Outer sheath:   Aluminium

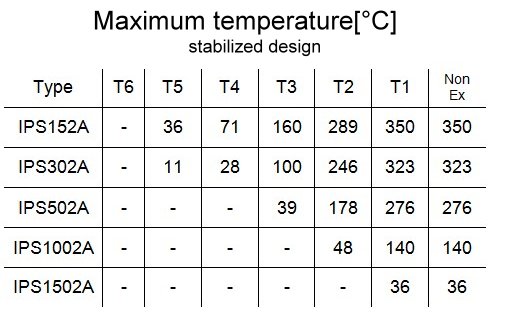

• Maximum temperature switched on:  s. table
• Maximum temperature switched off:  340°C, short term 425°C
• Minimum installation temperature:  –40°C (–40°F)
• Voltage:   220– 240VAC (other voltages see data sheet)
• Maximum braiding resistance:  <18,2 Ω/km
