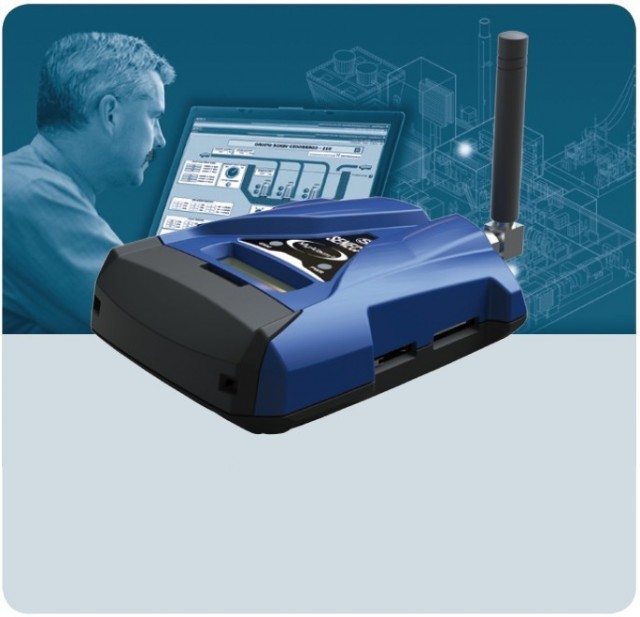

GSM/GPRS/3G+ Remote Communication and Datalogger Units:
|
|
|
EJH offers GSM/GPRS communication units with datalogging and remot control funcionts. Remote units integrate multi-function CPU and serial / TCP-IP communication ports, GSM (GPRS, PSTN) modem on-board, protected and isolated I/O terminal blocks. General purpose, battery and cathodic protection versions available. |
|
|
|
EMYALARM2 - GSM/GPRS terminal, datalogger, alarms and telecontrol unit |
|
EZ-RTU - Remote control integrated unit |
|
EM-RTU-GP - Battery powered telemetry unit |
|
EM-RTU-PC - Battery powered telemetry unit for cathodic protection |
|
EZ-GPRS2 - GSM / GPRS datalogger |
EM-RTU-GP
Battery powered compact telemetry unit
EM-RTU-GP is an integrated remote terminal unit suitable for monitoring of small plants: easy to use and install, compact and fl exible remote control suitable for data logging and alarming function. The low power consumption allows also a battery power supply (3 years life-time). The EM-RTU-GP is able to acquire, process, store and transmit analog or digital signals to a PC central station using GSM and GPRS standard communication.
|
Order code : |
|
EM-RTU-GP |
|
Description: |
|
Battery powered compact telemetry unit |
|
Configuration: |
|
4 DI, 2 AI, 2 DO (General Purpose version) |
|
Modem on-board: |
|
GSM Full Type Approval |
|
Memories: |
|
64 KB EEPROM, 2 MB flash |
|
Temporary turn on for sms receiving / sending |
|
Data transmission: |
|
on event or on demand |
|
External case: |
|
IP44 |
|
Dimensions: |
|
65 x 130 x 55 mm |
|
Power supply: |
|
14,4 V battery supply, 3 years life-time |
EM-RTU-PC
Compact telemetry unit for cathodic protection
EM-RTU-PC is a specific monitoring solution for cathodic protections: monitoring of parameters and analysis of material corrosion (oil and gas pipelines, tanks, plants, buildings, docks, etc.). The low power consumption allows also a battery power supply (3 years life-time). EM-RTU-GP is able to acquire, process, store and transmit analog or digital signals to a PC central station using GSM and GPRS standard communication.
|
Order code : |
|
EM-RTU-PC |
|
Description: |
|
Compact telemetry unit for cathodic protection |
|
Version: |
|
Cathodic Protection |
|
I/O Configuration: |
|
2 DI, 2 AI |
|
Modem: |
|
GSM Full Type Approval |
|
Memories: |
|
64 KB EEPROM, 2 MB flash |
|
Operating mode: |
|
Temporary turn on for sms receiving / sending |
|
Data transmission: |
|
On event or on demand |
|
External case: |
|
IP44 |
|
Dimensions: |
|
65 x 130 x 55 mm (internal unit) |
|
Power supply: |
|
14,4 V battery, 3 years life-time |
EMY-0
EMyALARM (Alarm management & Remote Control GSM Unit)
EMyALARM GSM is a GSM telecontrol unit for home & building applications, industrial plants and machines thorugh simple commands sent by SMS text messages. It works with any cell phone or smartphone. With MyALARMS GMS is possible to switch a boiler on / off, turn a contact on / off and so on. The device has a GSM module inside that works as a telephone terminal on any cellular network.
|
Order code : |
|
EMY-0 |
|
Description: |
|
EMyALARM (Alarm management & Remote Control GSM Unit) |
|
Power Supply: |
|
12 Vdc @100 mA (max 330 mA) |
|
Embedded detectors: |
|
Temperature sensor, power voltage network |
|
Input: |
|
4-CH digital reed, contact, NPN 2 wire, photoelectric, Hall, TTL, max frequency 5 Hz |
|
Output: |
|
2-CH digital contact with common terminal (max 50 Vdc, 50 mA) |
|
Modem: |
|
Quad band (850 / 900 / 1800 / 1900 MHz) |
|
Dimension: |
|
100 x 67,5 x 24,5 mm |
EMY2B
EMyALARM2 - GSM/GPRS datalogger, standard version
EMyAlarm2 is a GSM / GPRS telecontrol unit for home & building applications, industrial plants and machines thorugh simple commands sent by SMS text messages, phone rings, emails. It operates with any cell phone or smartphone. With MyAlarm2 is possible to switch a boiler on / off, turn a contact on / off and etc. The device has a GSM / GPRS module inside that works as a telephone terminal on any cellular network.
*EMYALARM2 settings made with earlier versions of EASY EMYALARM2 3.12 may not be compatible with the latest version.
|
Order code : |
|
EMY2B |
|
Description: |
|
EMyALARM2 - GSM/GPRS datalogger, standard version |
|
Built-in Moden: |
|
GSM / GPRS quadband |
|
USB Interface: |
|
2.0, mini USB |
|
Expandable Memory: |
|
Slot Micro SD (up to 32 GB) |
|
Built-In Temperature Probe: |
|
NTC |
|
Digital Input: |
|
Nr4 channels |
|
Counters: |
|
Nr 4 (@32 bits, max 30 Hz) |
|
Totalizers: |
|
Nr 4 (@32 bits, max 30 Hz) |
|
Digital Output: |
|
Nr SPST Relay Output 3 A (Option) |
|
Analog Input: |
|
Nr 2 channels (mA, V), 16 bit resolution |
|
Built-In Flash Memory: |
|
2 Mb |
|
Power supply: |
|
Through USB port or clamps |
EMY2G
EMyALARM2 - GSM/GPRS datalogger, GPS version
EMyALARM2 GPS (MY2G) include some tracking functions into the standard EMY2 version. EMY2G allows the setting of virtual fence and speed alarms, as well as the activation of tracker “function”. EMyALARM2 can transmit your GPS position to identify the localization of mobile vehicles such as cars and boats. EMY2G can also send GPS coordinates on Google Maps ™ mapping system via SMS or email. For indoor applications, or with low power, you can connect an external GPS antenna.
*EMYALARM2 settings made with earlier versions of EASY EMYALARM2 3.12 may not be compatible with the latest version.
|
Order code : |
|
EMY2G |
|
Description: |
|
EMyALARM2 - GSM/GPRS datalogger, GPS version |
|
Built-in Modem: |
|
GSM / GPRS quadband |
|
USB interface: |
|
2.0 mini B |
|
Expandable Memory: |
|
Slot Micro SD (up to 32 GB) |
|
Built-in Memory: |
|
Flash (2 MB) |
|
Integrated temperature probe: |
|
NTC |
|
Digital Input: |
|
Nr 4 channels |
|
Counters: |
|
Nr 4 (@32 bit, max 30 Hz) |
|
Totalizers: |
|
Nr 4 (@32 bit, max 30 Hz) |
|
Digital Output: |
|
Nr 2 SPST 3 A relay (option) |
|
Analog Input: |
|
Nr 2 channels (mA, V), 16 bi resolution |
|
GPS sensor: |
|
42 channels receiver |
|
Allarms: |
|
virtual fence, speed limit |
|
GPS tracking: |
|
Google Maps |
EMY2S
EMyALARM2 - GSM/GPRS datalogger, Security Audio version
EMyALARM2 SECURITY AUDIO (EMY2S) is a GSM / GPRS communicator operating autonomously or as expansion for anti-theft and anti-intrusion systems due to ease of installation and programming. EMY2S allows sending SMS or voice alarm messages (with SIM Voice) as well as fast commands and acknowledge alarms via DTMF tones. The device is equipped with the anti-jamming system, dialer number identification, self-control battery status, anti-theft system activattion.
*EMYALARM2 settings made with earlier versions of EASY EMYALARM2 3.12 may not be compatible with the latest version.
|
Order code : |
|
EMY2S |
|
Description: |
|
EMyALARM2 - GSM/GPRS datalogger, Security Audio version |
|
Built-in Modem: |
|
GSM / GPRS quadband |
|
USB Interface: |
|
2.0, mini USB |
|
Expandable Memory: |
|
Slot Micro SD (up to 32 GB) |
|
Built-In Temperature Probe: |
|
NTC |
|
Digital Input: |
|
Nr4 channels |
|
Counters: |
|
Nr 4 (@32 bits, max 30 Hz) |
|
Totalizers: |
|
Nr 4 (@32 bits, max 30 Hz) |
|
Digital Output: |
|
Nr SPST Relay Output 3 A (Option) |
|
Analog Input: |
|
Nr 2 channels (mA, V), 16 bit resolution |
|
Built-In Flash Memory: |
|
2 Mb |
|
Power supply: |
|
Through USB port or clamps |
EZ-GPRS2
GSM/GPRS datalogger with built-in IOs and telecontrol functions
EZ-GPRS2 is a GSM / GPRS, multi-protocol wireless unit, with built-in I/O's for high-performance data acquisition, datalogging, commands, measurements and alarms managemente. Applications range include: photovoltaic building automation, M2M telemetry communication. It works stand-alone or networked. EZ-GPRS2 operate as Master Modbus unit on RS485 serial ports and GSM/GPRS communication support.
|
Order code : |
|
EZ-GPRS2 |
|
Description: |
|
GSM/GPRS datalogger with built-in IOs and telecontrol functions |
|
Power Supply: |
|
11..40 Vdc; 19..28 Vac (50-60 Hz) |
|
Serial Interface # 1: |
|
RS485 Modbus, programmable baud rate |
|
Serial Interface # 2: |
|
RS485, programmable baud rate |
|
USB Interface: |
|
Mini USB B OST type |
|
Ethernet Interface: |
|
10/100 Mbps (RJ45) |
|
I/O Channels: |
|
#4 digital inputs PNP, NPN (counters @32 bit up to 30 Hz), #2 analog inputs (mA, V), #2 digital outputs (relay) |
|
GSM/GPRS Modem: |
|
Quad band 850/900/1800/1900 MHz |
|
Memory Support: |
|
SD memory card slot up to 32 GB |
|
Remote control functions: |
|
Alarms management (by SMS,Email, ftp), datalogging, control task through SEAL graphic language |
|
Dimension: |
|
100 x 112 x 35 mm (l x h x p) |
EZ-GPRS2-SEAL
GSM/GPRS datalogger with built-in IOs, telecontrol functions and advanced programming language
EZ-GPRS2-SEAL is a GSM / GPRS quad band datalogger, with built-in I/Os and Ethernet interface. The device is configured as master unit of EZ-PC Line remote I/O system . EZ-GPRS2-SEAL offers high performance for data acquisition, data storage, and wireless data transmission, measurements and alarms. EZ-GPRS2-SEAL unit operates as a Modbus master unit on the RS485 serial communication port with wireless GSM / GPRS transmission mode. The software package SEAL (Seneca Advanced Language) allows, based on object oriented programming, enables control logic, automation routines, alarms, thresholds, timers, report management with the possiibility to fully configure and upgrade the device by SIM card or static IP.
|
Order code : |
|
EZ-GPRS2-SEAL |
|
Description: |
|
GSM/GPRS datalogger with built-in IOs, telecontrol functions and advanced programming language |
|
Power Supply: |
|
11..40 Vdc; 19..28 Vac (50-60 Hz) |
|
Serial Interface # 1: |
|
RS485 Modbus, programmable baud rate |
|
Serial Interface # 2: |
|
RS485, programmable baud rate |
|
USB Interface: |
|
Mini USB B OST type |
|
Ethernet Interface: |
|
10/100 Mbps (RJ45) |
|
I/O Channels: |
|
#4 digital inputs PNP, NPN (counters @32 bit up to 30 Hz), #2 analog inputs (mA, V), #2 digital outputs (relay) |
|
GSM/GPRS Modem: |
|
Quad band 850/900/1800/1900 MHz |
|
Memory Support: |
|
SD memory card slot up to 32 GB |
|
Remote control functions: |
|
Alarms management (by SMS, Email, ftp/cloud), datalogging, control task through SEAL graphic language |
|
Dimension: |
|
100 x 112 x 35 mm (l x h x p) |
EZ-LOGGER
Datalogger, alarm module, webserver with built-in I/O
EZ-LOGGER is an alarm control module integrated with a data logger, a web server and backup batteries. It supports Modbus TCP-IP over Ethernet 10/100 and Modbus RTU over RS485. EZ-LOGGER manages csv log files, process alarms, analog thresholds, counters, digital inputs. The module is provided by Nr 2 analog inputs current (0-20 mA) and voltage (0-30V), Nr 4 configurable digital inputs NPN-PNP, Nr 4 32 bits max 10 Hz counters and totalizers, Nr 2 relay outputs NO / NC max 2 A.
|
Order code : |
|
EZ-LOGGER |
|
Description: |
|
Datalogger, alarm module, webserver with built-in I/O |
|
Power Supply: |
|
11..40 Vdc; 19..28 Vac (clamp / bus) |
|
Processor: |
|
CPU 100 MHz |
|
Memory: |
|
2 MB flash - 128 kB RAM |
|
Communication ports: |
|
2 x RS485; 1 x mini USB 2.0 B type; N1 x RJ45 Fast Ethernet 10/100 Mbps |
|
I/O channels: |
|
Nr 2 analog input mA/V; Nr 4 digital input NPN-PNP, Nr 4 totalizers/counters @ 32 bit max 30 Hz; Nr 2 relay output NC/NO max 2 A |
|
Log: |
|
Csv file on microDC/micro SD HC card max 32 GB or via ftp |
|
Settings: |
|
Software EASY SETUP / EASY LOG VIEWER, Web server, Dip-switch |
|
Dimension: |
|
100 x 112 x 35 mm (lxhxw) |
EZ-LOGGER-SEAL
Datalogger, alarm module, webserver with built-in I/O
EZ-LOGGER-SEAL is an alarm control module integrated with a data logger, a web server and backup batteries. It supports Modbus TCP-IP over Ethernet 10/100 and Modbus RTU over RS485. EZ-LOGGER manages csv log files, process alarms, analog thresholds, counters, digital inputs. The module is provided by Nr 2 analog inputs current (0-20 mA) and voltage (0-30V), Nr 4 configurable digital inputs NPN-PNP, Nr 4 32 bits max 10 Hz counters and totalizers, Nr 2 relay outputs NO / NC max 2 A.
|
Order code : |
|
EZ-LOGGER-SEAL |
|
Description: |
|
Datalogger, alarm module, webserver with built-in I/O |
|
Power Supply: |
|
11..40 Vdc; 19..28 Vac (clamp / bus) |
|
Processor: |
|
CPU 100 MHz |
|
Memory: |
|
2 MB flash - 128 kB RAM |
|
Communication ports: |
|
2 x RS485; 1 x mini USB 2.0 B type; N1 x RJ45 Fast Ethernet 10/100 Mbps |
|
I/O channels: |
|
Nr 2 analog input mA/V; Nr 4 digital input NPN-PNP, Nr 4 totalizers/counters @ 32 bit max 30 Hz; Nr 2 relay output NC/NO max 2 A |
|
Log: |
|
Csv file on microDC/micro SD HC card max 32 GB or via ftp |
|
Settings: |
|
Software SEAL / EASY LOG VIEWER, Web server, Dip-switch |
|
Dimension: |
|
100 x 112 x 35 mm (lxhxw) |
EZ-RTU
All-in-one remote terminal unit
EZ-RTU is an all-in-one unit dedicated for telecontrol: simple solution for alarm management, datalogging and GSM/GPRS connection with central PC station. EZ-RTU offers excellent calculus capabilities and memory, I/O on board, N.2 serial ports, N.1 Ethernet, an industrial dual band full type approval GSM modem for the remote connections, (alternatively, a PSTN modem may be installed) to allow the remote management of alarms, diagnostics and automatic data sending. For all these features EZ-RTU is the ideal solution for environmental monitoring applications, water and pump control systems, gas control and energy management.
|
Order code : |
|
EZ-RTU |
|
Description: |
|
All-in-one remote terminal unit |
|
Power supply: |
|
10-30 Vdc |
|
Isolation: |
|
1.500 Vac |
|
16 (8) digital inputs with internal / external power supply |
|
8 (4) digital outputs SPDT relais |
|
4 (2) analog inputs, 14 bits |
|
2 (1) analog outputs current / voltage, 12 bits |
|
IEC 61131 configuring & programming software |
|
Dimensions 185 x 242 x 36,90 m |
