Enclosures made of glass-fiber reinforced polyester have been used a thousand times in even the harshest of environments as terminal boxes. Aggressive chemicals and / or mechanical stress can not damage these rugged enclosures. Silicone seals in the lid close cleanly and permanently without much deformation.Integral 4.5mm clearance holes moulded into the body serve to attach the DIN rail on which the terminals to be set. Captive screws in the lid increase the utility. By a carbonloaded surface with a low surface resistance is a static charge not possible.

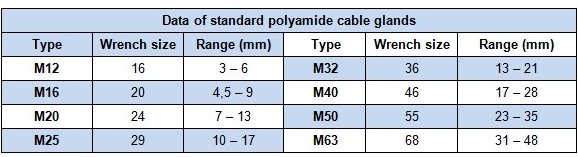

cable diameter range for cable glands :
.

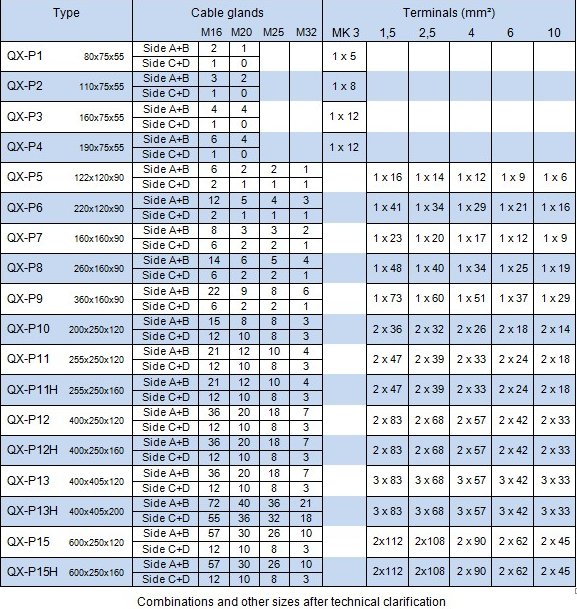

Sizes
Online calculation
Applications

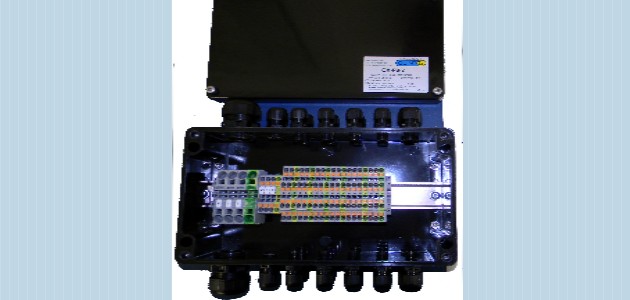

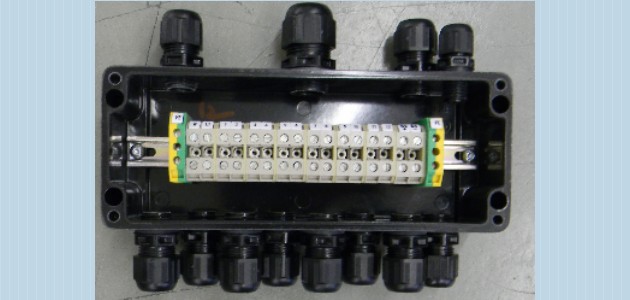

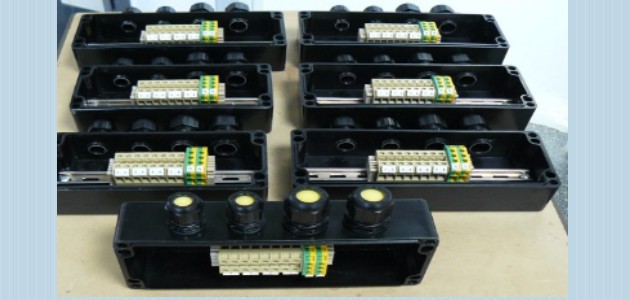

Here are some types of GRP polyester terminal boxes which illustrates the variety of possible applications. All terminal boxes are manufactured by us and 100% individually tested.
If you want to know more about such applications, you are heartly invited to come to us or to contact us via our contact page

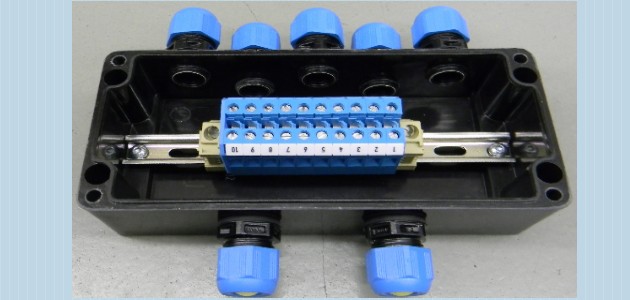

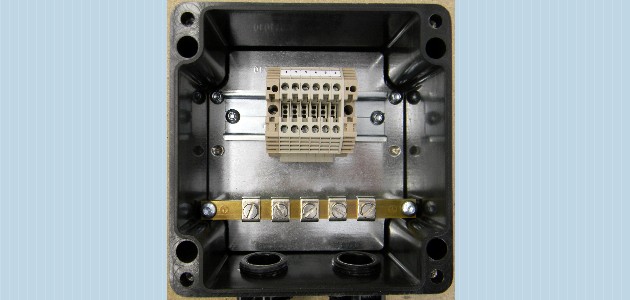

Ex i terminal box

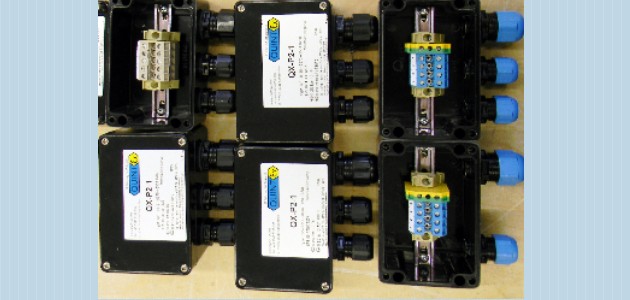

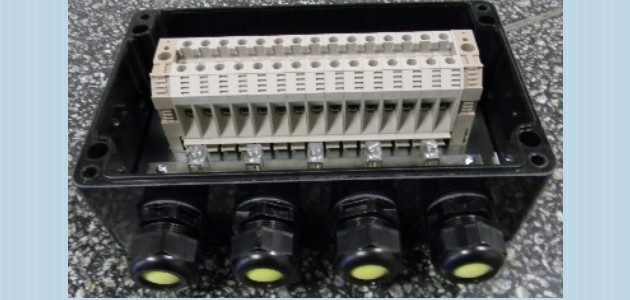

Very small terminal box 110 x 75 mm

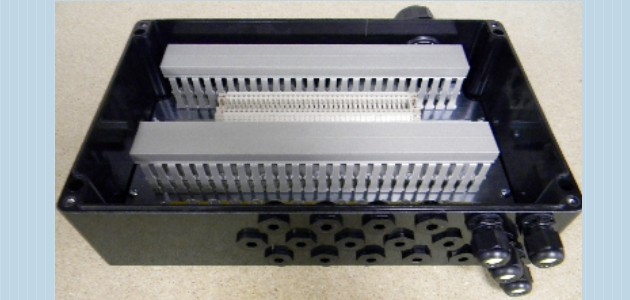

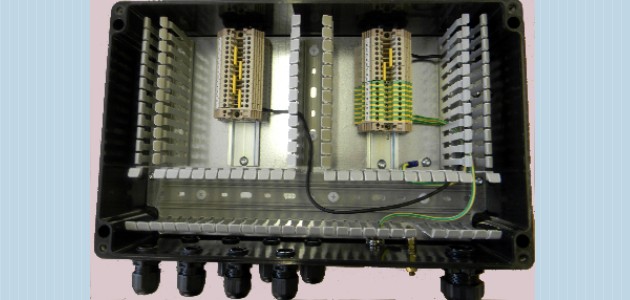

Terminal box with extra high enclosure wall for special terminals

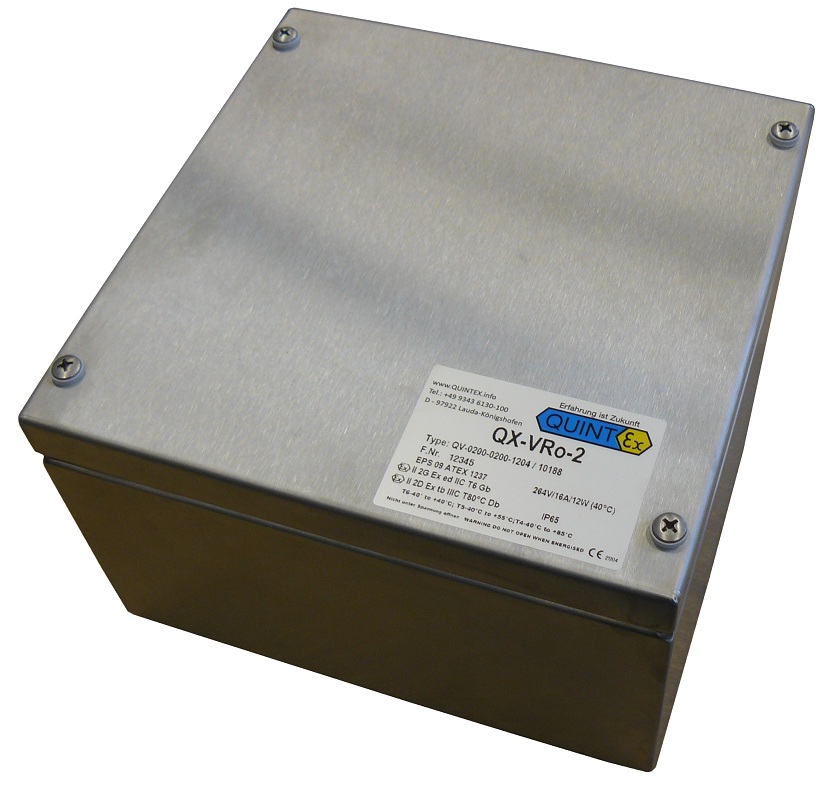

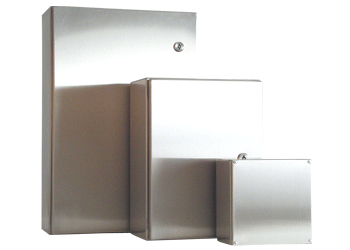

Stainless steel enclosures (316 L, VA 1.4404) have proven themselves in the most difficult environments and in hygienic areas as distribution or terminal boxes and for local control stations. These enclosures be required by operators more and more often. Aggressive chemical substances and / or mechanical stresses can not harm these robust cabinets. Silicone seals (Tmin = -50 ° C) in the lid close permanently without deformation. To ease the assembling with cable glands optional flange plates may be used on the sides. An optionally available mounting plate makes mounting with terminals very easy.
cable diameter range for cable glands :
.
Sizes
Online calculation
Applications
Here are some types of stainless steel terminal boxes which illustrates the variety of possible applications. All terminal boxes are manufactured by us and 100% individually tested.
f you want to know more about such applications, you are heartly invited to come to us or to contact us via our contact page

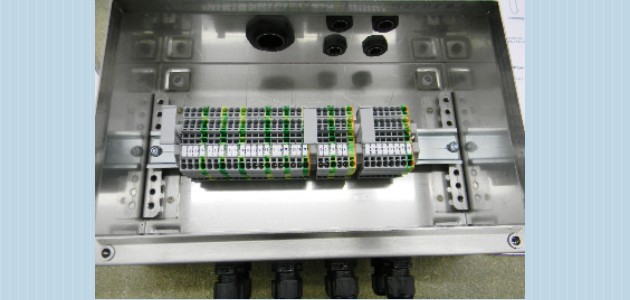

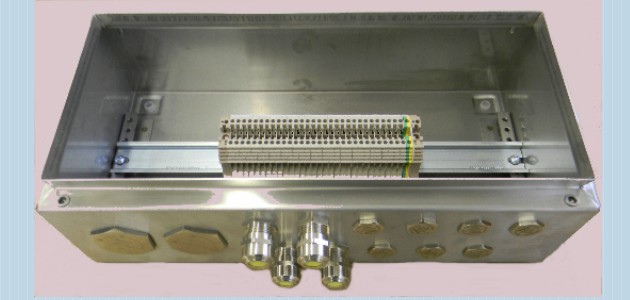

Stainless steel termina box with cable channel

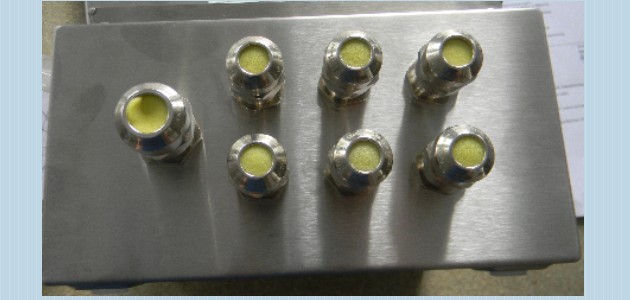

Stainless steel enclosure with stoppiung plug

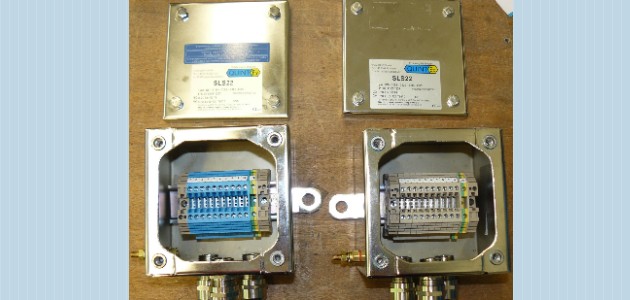

Very small stainless steel distribution box

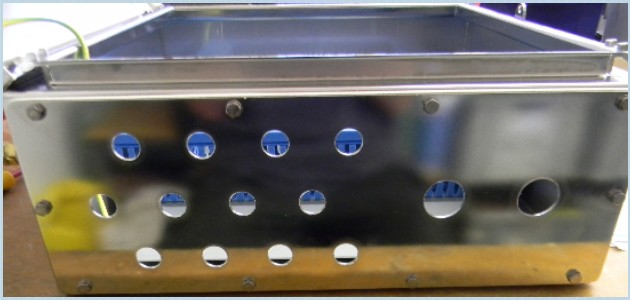

Stainless steel terminal box without cable glands

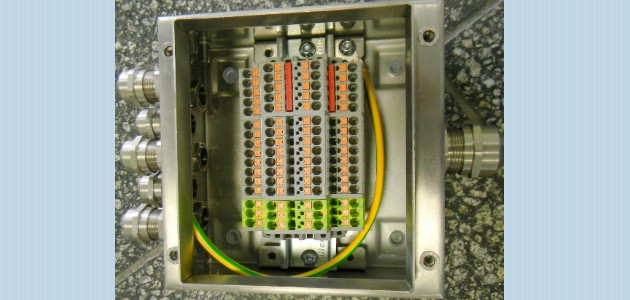

Multi level clamp within stainless steel enclosure
Stainless steel termina box with cable channel
Stainless steel enclosure with stoppiung plug
Very small stainless steel distribution box
Stainless steel enclousre with plastic cable glands
Stainless steel cable glands at a distribution box

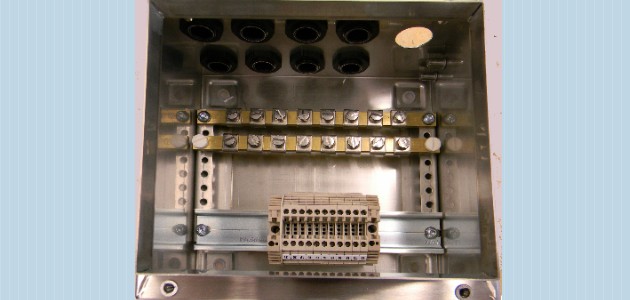

Stainless steel terminal box with shield bar
Stainless steel distrbution box with blue cable channel

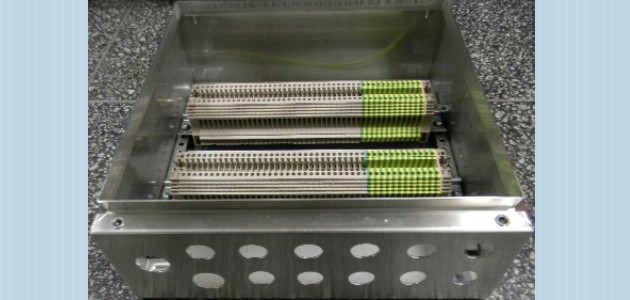

Stainless steel terminal box without cable glands
Multi level clamp within stainless steel enclosure
