Energy Counters:
The new EJH energy counters for DIN rail mounting cover the most different application requirements for single-phase and three-phase systems. Available with RS485 Modbus, M-BUS or Ethernet + webserver communication interfaces, the energy counters are compliant with MID (2004/22 / EC Directive) in class B with EN 50470 standard.

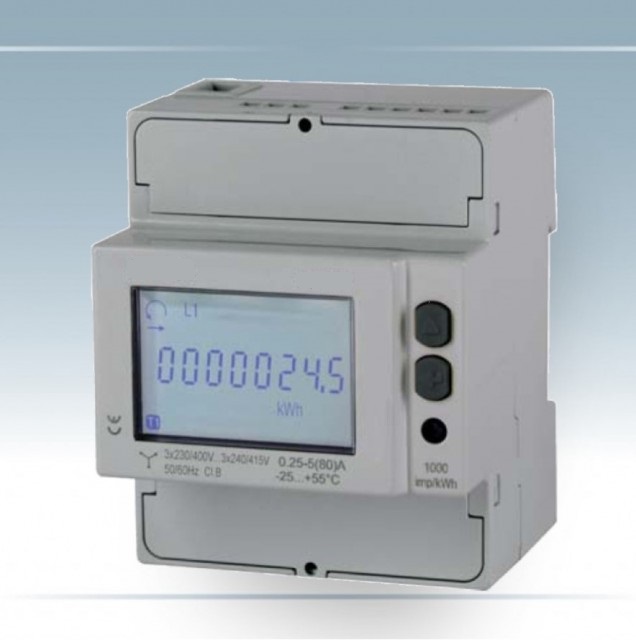

Equipped with Wide backlighted LCD display for easy consultation of the values of energy and power, the counters also make avalilable the diagnostic function signaling polarity errors in the connection.
ENERGY M-BUS Pack
Configuration tool for Energy counters S500 series with M-BUS interface
Configuration tool for Energy counters S500 series with embedded M-BUS interface or external optic communication module S500-MBU
|
Order code : |
|
ENERGY M-BUS Pack |
|
Description: |
|
Configuration tool for Energy counters S500 series with M-BUS interface |
ENERGY ModBUS Pack
Configuration tool for Energy counters ES500 series with ModBUS or LAN interfaces
Configuration tool for Energy counters S500 series with embedded M-BUS or LAN interfaces or external optic communication modules ES500-MOD or ES500-ETH
|
Order code : |
|
ENERGY ModBUS Pack |
|
Description: |
|
Configuration tool for Energy counters S500 series with ModBUS or LAN interfaces |
ES500-ETH
Ethernet optical interface module
ES500-ETH module allows to manage a single energy counter by any PC connected to Internet/LAN by means of a simple web browser. Another supported feature is MODBUS TCP protocol. MODBUS TCP is the most popular communication protocol designed to allow industrial equipment to communicate over a network. The use of MODBUS TCP provides a totally scaleable solution according to the needs.
|
Order code : |
|
ES500-ETH |
|
Description: |
|
Ethernet optical interface module |
|
Dimensions (WxHxD): |
|
36x90x65 mm |
|
Optical port: |
|
In combination with energy coutner |
|
Energy Counters: |
|
6A 3 phase, 80A single phase, 80A 3 phase |
|
Supported browsers: |
|
Internet Explorer 7, Internet Explorer 8, Mozilla Firefox 3.xx, Apple Safari, Google Chrome, Opera, Netscape navigator |
|
Protocols: |
|
Ethernet, ModBUS TCP-IP |
ES500-MBU
M-BUS optical interface module
ES500-MBU module module allows to collect and transmit measurements data of the connected meter to a remote station using M-Bus protocol. M-Bus (Meter-Bus) is a European standard for the remote reading of consumption meters. A free dedicated software is provided for module configuration and for displaying the detected measurements.
|
Order code : |
|
ES500-MBU |
|
Description: |
|
M-BUS optical interface module |
|
Dimensions (WxHxD): |
|
18x90x65 mm |
|
Optical port: |
|
In combination with energy counter |
|
Energy Counter: |
|
6A 3 phase, 80A single phase, 80A 3 phase |
|
Supported browser: |
|
Internet Explorer 7, Internet Explorer 8, Mozilla Firefox 3.xx, Apple Safari, Google Chrome, Opera, Netscape navigator. |
|
Protocols: |
|
M-Bus |
ES500-MOD
RS485 MODBUS optical interface module
ES500-MOD module allows to collect and transmit measurements data of the connected meter to a remote station. This data is transmitted on a RS485 line, using ModBUS RTU or ASCII protocols. ModBUS is the most popular communication protocol designed to allow industrial equipment to communicate. RS485 module is provided with a SET DEFAULT key to reset all communication parameters to factory default values. This function is very useful, i.e. in case of MODBUS logical address forgotten. Two LEDs on the RS485 module provide information about power supply status and communication status.
|
Order code : |
|
ES500-MOD |
|
Description: |
|
RS485 MODBUS optical interface module |
|
Dimensions (WxHxD): |
|
18x90x65 mm |
|
Optical port: |
|
In combination with energy counters |
|
Energy Counters: |
|
6A 3 phase, 80A single phase, 80A 3 phase |
|
Supported browsers: |
|
Internet Explorer 7, Internet Explorer 8, Mozilla Firefox 3.xx, Apple Safari, Google Chrome, Opera, Netscape navigator |
|
Protocols: |
|
ModBUS RTU/ASCII |
|
|
ES501-32
32A 2 wires single phase energy counter
ES501-32 is a 1 DIN module energy counter for the active energy monodirectional measurement in industrial and civilian application, available with MID certification suitable for billing. On request, the device can be integrated with M-BUS interface for the remote communication (optional). Besides the energy, the counter can measure the main electrical parameters and makes them available on the display and on the M-BUS communication port (optional).
|
Order code : |
|
ES501-32 |
|
Description: |
|
32A 2 wires single phase energy counter |
|
Power Supply: |
|
From voltage lines |
|
Voltage Range: |
|
3x230/400V..3x240/415 V 50/60 Hz 4 wires; 3x400V..3x415V 50/60 Hz 3 wires |
|
Current: |
|
32 A |
|
Display: |
|
Backlighted LCD, 43x12 mm |
|
Accuracy: |
|
Class B according to EN 50470-3 |
|
Metrological LED: |
|
Meter constant 5000 imp/kWh |
|
S0 outputs: |
|
1 passive optoisolated |
|
Dimension: |
|
18x90x65 mm |
|
Protection Degree: |
|
IP20 |
|
Certifications: |
|
CE, MID (optional) |
ES502-80
80A 2 wired single phase energy counter
ES502-80 is a 80A single phase energy counter, 2 wires, 2 DIN modules, 230V..240V (50/60Hz) voltage range, with MID certification (option), reset function for each counter (option), communication with external interface. Combined with different external modules, the counter can communicate with other systems. COM modules are available for the most common field protocols. Besides the energy, the counter can measure the main electrical parameters and makes them available on the COM port. The LCD display shows the energies and the instantaneous powers. The counter is built according EN50470-3 standard. The accuracy of the active energy fulfills class B requirements. The accuracy of the reactive energy is compliant to EN62053-23 class 2.
|
Order code : |
|
ES502-80 |
|
Description: |
|
80A 2 wired single phase energy counter |
|
Power supply: |
|
From the voltage circuit |
|
Voltage: |
|
230V 50Hz 2 wires, 240V 50Hz 2 wires, 230V 50/60Hz 2 wires, 230...240V 50/60Hz 2 wires |
|
Max Current: |
|
80 A |
|
Accuracy: |
|
Active energy class B according to EN50470-3, Reactive energy class 2 according to EN62053-23 |
|
S0 outputs: |
|
2 passive optoisolated, pulse length |
|
Tariff input: |
|
Active optoisolated, maximum voltage |
|
Metrological LED: |
|
Meter constant 1000 imp/kWh |
|
Operating temperature: |
|
-25°C ÷ +55°C |
|
Certifications: |
|
CE, UL |
ES503-6
6A 3 wires three phase energy counter
ES503-6 is a energy counter DIN module for the energy measurement in industrial and civilian application. Combined with different external modules, the counter can communicate with other systems. COM modules are available for the most common field protocols. Besides the energy, the counter can measure the main electrical parameters and makes them available on the COM port. The LCD display shows the energies and the instantaneous powers. The counter is built according EN 50470-3 standard. The accuracy of the active energy fulfills class B requirements. The accuracy of the reactive energy is compliant to EN 62053-23 class 2.
|
Order code : |
|
ES503-6 |
|
Description: |
|
6A 3 wires three phase energy counter |
|
Power Supply: |
|
Self-powered by the measuring circuit |
|
Input voltage range: |
|
3x400 V...3x415 V 50-60 Hz 3 wires |
|
Current input: |
|
TA 1/5 A |
|
Accuracy: |
|
Active energy class B according to EN50470-3; Reactive Energy class 2 according to EN62053-23 |
|
S0 Output: |
|
2 passive optoisolated |
|
Tariff input: |
|
Active optoisolated, max voltage |
|
Reset partial counters: |
|
Si |
|
Reset total counters: |
|
Optional (only -R version) |
|
Metrological LED: |
|
10.000 imp/kWh |
|
Dimensions (LxHxP): |
|
72x90x65 mm |
|
Certifications: |
|
CE |
ES503-80
80A 3 wires three phase energy counter
ES503-80 is a 4 DIN modules energy counter for the energy measurement in industrial and civilian application. Combined with different external modules, the counter can communicate with other systems. COM modules are available for the most common field protocols. Besides the energy, the counter can measure the main electrical parameters and makes them available on the COM port. The LCD display shows the energies and the instantaneous powers. The counter is built according EN50470-3 standard. The accuracy of the active energy fulfills class B requirements. The accuracy of the reactive energy is compliant to EN62053-23 class 2.
|
Order code : |
|
ES503-80 |
|
Description: |
|
80A 3 wires three phase energy counter |
|
Power Supply: |
|
Self-powered by the measuring circuit |
|
Input voltage range: |
|
3x400 V...3x415 V 50-60 Hz 3 wires |
|
Current input: |
|
80 A direct input |
|
Accuracy: |
|
Active energy class B according to EN50470-3; Reactive Energy class 2 according to EN62053-23 |
|
S0 Output: |
|
2 passive optoisolated |
|
Tariff input: |
|
Active optoisolated, max voltage |
|
Reset partial counters: |
|
si |
|
Reset total counters: |
|
optional (only -R version) |
|
Metrological LED: |
|
10.000 imp/kWh |
|
Dimensions (LxHxP): |
|
72x90x65 mm |
|
Certifications: |
|
CE |
ES504-80
80A 4 wire three phase energy counter
ES504-80 is a 4 DIN energy counter module for the energy measurement in industrial and civilian application. Combined with different external modules, the counter can communicate with other systems. COM modules are available for the most common field protocols. Besides the energy, the counter can measure the main electrical parameters and makes them available on the COM port. The LCD display shows the energies and the instantaneous powers. The counter is built according EN50470-3 standard. The accuracy of the active energy fulfills class B requirements. The accuracy of the reactive energy is compliant to EN62053-23 class 2.
|
Order code : |
|
ES504-80 |
|
Description: |
|
80A 4 wire three phase energy counter |
|
Power Supply: |
|
Self-powered by the measuring circuit |
|
Input voltage range: |
|
3x230/400 V...3x240/415 V 50-60 Hz 4 wires |
|
Current input: |
|
80 A direct input |
|
Accuracy: |
|
Active energy class B according to EN50470-3; Reactive Energy class 2 according to EN62053-23 |
|
S0 Output: |
|
2 passive optoisolated |
|
Tariff input: |
|
Active optoisolated, max voltage |
|
Reset partial counters: |
|
si |
|
Reset total counters: |
|
optional (only -R version) |
|
Metrological LED: |
|
10.000 imp/kWh |
|
Dimensions (LxHxP): |
|
72x90x65 mm |
|
Certifications: |
|
CE |
ES504C-80
80A 3/4 wires three phase energy counter
With direct connection up to 80A, S504C-80 is a 4 DIN energy counter module for the energy measurement in industrial and civilian application, with built-in communication (RS485 Modbus, M-Bus or Ethernet). Besides the energy, the counter can measure the main electrical parameters and makes them available on the builtin COM port. The LCD display shows the energies and the instantaneous powers. The COM port allows to manage the connected meter by a remote station. Data is transmitted on a RS485, M-Bus or Ethernet line according to the instrument model. It is possible to add a second COM interface using optical communication modules S500 series.
|
Order code : |
|
ES504C-80 |
|
Description: |
|
80A 3/4 wires three phase energy counter |
|
Power supply: |
|
From the voltage lines |
|
|
|
Voltage: |
|
3x230/400V ... 3x240/415V 50/60Hz 4 wires |
|
Max Current: |
|
80 A |
|
Communication Interfaces: |
|
RS485 Modbus, M-Bus, Ethernet |
|
Accuracy: |
|
Active energy class 1 according to IEC/EN 62053-21, Reactive energy class 2 according to IEC/EN 62053-23 |
|
S0 output: |
|
Passive optoisolated, pulse length 50 ±2ms ON time |
|
Tariff input: |
|
Active optoisolated (not available with Ethernet model) |
|
Metrological LED: |
|
Meter constant 1000 pulse/kWh |
|
Operating temperature: |
|
-25°C ... +55°C |
|
Certifications: |
|
CE, MID |
ES504C-6
6A 3/4 wires three phase energy counter
ES504C-is a 4 DIN energy counter module for the energy measurement in industrial and civilian application, with built-in communication (RS485 Modbus, M-Bus or Ethernet). Besides the energy, the counter can measure the main electrical parameters and makes them available on the builtin COM port. The LCD display shows the energies and the instantaneous powers. The COM port allows to manage the connected meter by a remote station. Data is transmitted on a RS485, M-Bus or Ethernet line according to the instrument model. It is possible to add a second COM interface using optical communication modules S500 series.
|
Order code : |
|
ES504C-6 |
|
Description: |
|
6A 3/4 wires three phase energy counter |
|
Power supplied: |
|
From the voltage lines |
|
Voltage: |
|
3x230/400V ... 3x240/415V 50/60Hz 4 wires |
|
Max current: |
|
6 A |
|
Communication interfaces: |
|
RS485 Modbus, M-Bus, 10/100Base T Ethernet |
|
Accuracy: |
|
Active energy class 1 according to IEC/EN 62053-21, Reactive energy class 2 according to IEC/EN 62053-23 |
|
S0 output: |
|
1 Passive optoisolated, Pulse length 50 ±2ms ON time |
|
Metrological LED: |
|
Meter constant 10000 pulse/kWh |
|
Operating temperature: |
|
-25°C ... +55°C |
|
Certifications: |
|
CE, MID |
ES504-6
6A 4 wire three phase energy counter
ES504-6 is a 4 DIN energy counter module for the energy measurement in industrial and civilian application. Combined with different external modules, the counter can communicate with other systems. COM modules are available for the most common field protocols. Besides the energy, the counter can measure the main electrical parameters and makes them available on the COM port. The LCD display shows the energies and the instantaneous powers. The counter is built according EN 50470-3 standard. The accuracy of the active energy fulfills class B requirements. The accuracy of the reactive energy is compliant to EN 62053-23 class 2.
|
Order code : |
|
ES504-6 |
|
Description: |
|
6A 4 wire three phase energy counter |
|
Power Supply: |
|
Self-powered by the measuring circuit |
|
Input voltage range: |
|
3x230/400 V...3x240/415 V 50-60 Hz 4 wires |
|
Current input: |
|
TA 1/5 A |
|
Accuracy: |
|
Active energy class B according to EN50470-3; Reactive Energy class 2 according to EN62053-23 |
|
S0 Output: |
|
2 passive optoisolated |
|
Tariff input: |
|
Active optoisolated, max voltage |
|
Reset partial counters: |
|
Si |
|
Reset total counters: |
|
Optional (only -R version) |
|
Metrological LED: |
|
10.000 imp/kWh |
|
Dimensions (LxHxP): |
|
72x90x65 mm |
|
Certifications: |
|
CE |
ES534-80
80A 3/4 wires three phase energy counter
ES534-80 is a 4 DIN module energy counter for the energy measurement in industrial and civilian application, available with MID certification suitable for billing. Combined with different external modules, the counter can communicate with other systems. COM modules are available for the most common field protocols. Besides the energy, the counter can measure the main electrical parameters and makes them available on the COM port. The LCD display shows the energies and the instantaneous powers. The counter is built according EN50470-3 standard. The accuracy of the active energy fulfills class B requirements. The accuracy of the reactive energy is compliant to EN62053-23 class 2.
|
Order code : |
|
ES534-80 |
|
Description: |
|
80A 3/4 wires three phase energy counter |
|
Power Supply: |
|
Self-powered by the measuring circuit |
|
Input voltage range: |
|
3x230/400 V...3x240/415 V 50-60 Hz 4 wires; 3x400 V...3x415 V 50-60 Hz 3 wires |
|
Current input: |
|
80 A direct input |
|
Accuracy: |
|
Active energy class B according to EN50470-3; Reactive Energy class 2 according to EN62053-23 |
|
S0 Output: |
|
2 passive optoisolated |
|
Tariff input: |
|
Active optoisolated, max voltage |
|
Reset partial counters: |
|
si |
|
Reset total counters: |
|
optional (only -R version) |
|
Metrological LED: |
|
10.000 imp/kWh |
|
Dimensions (LxHxP): |
|
72x90x65 mm |
|
Certifications: |
|
CE, MID (optional) |
ES534-6
6A 3/4 wires three phase energy counter
ES534-6 is a 4 DIN module energy counter for the energy measurement in industrial and civilian application, available with MID certification suitable for billing. Combined with different external modules, the counter can communicate with other systems. COM modules are available for the most common field protocols. Besides the energy, the counter can measure the main electrical parameters and makes them available on the COM port. The LCD display shows the energies and the instantaneous powers. The counter is built according EN 50470-3 standard. The accuracy of the active energy fulfills class B requirements. The accuracy of the reactive energy is compliant to EN 62053-23 class 2.
|
Order code : |
|
ES534-6 |
|
Description: |
|
6A 3/4 wires three phase energy counter |
|
Power Supply: |
|
Self-powered by the measuring circuit |
|
Input voltage range: |
|
3x230/400 V...3x240/415 V 50-60 Hz 4 wires; 3x400 V...3x415 V 50-60 Hz 3 wires |
|
Current input: |
|
TA 1/5 A |
|
Accuracy: |
|
Active energy class B according to EN50470-3; Reactive Energy class 2 according to EN62053-23 |
|
S0 Output: |
|
2 passive optoisolated |
|
Tariff input: |
|
Active optoisolated, max voltage |
|
Reset partial counters: |
|
Si |
|
Reset total counters: |
|
Optional (only -R version) |
|
Metrological LED: |
|
10.000 imp/kWh |
|
Dimensions (LxHxP): |
|
72x90x65 mm |
|
Certifications: |
|
CE, MID (optional) |
