heating tape-connection sets
-

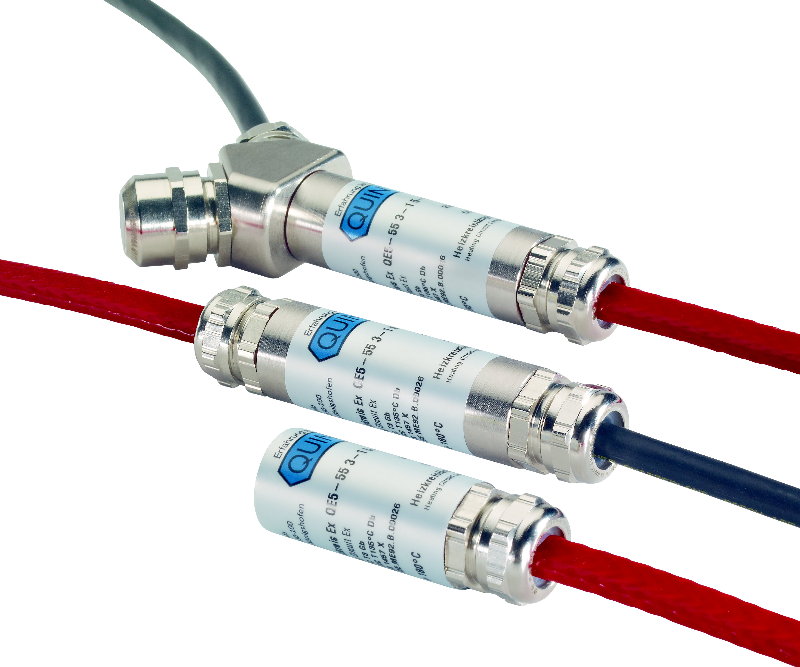

IAL8 fast connector -60 °C - 180°C
Description

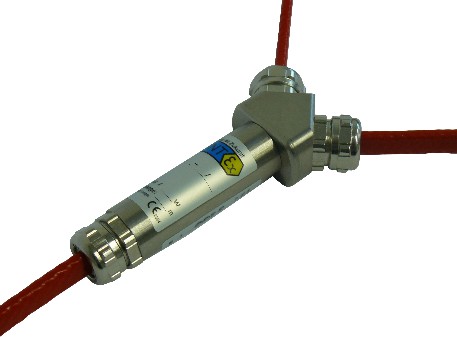

The IAL8Ex… system is a very easy and fast to install connection kit for connecting power supply cable as well as heating cable, end termination, based on an approved screw connection. Due to the very compact design, it is possible to mount the parts directly on the surface of the pipe/tank/enclosure underneath the insulation. There is no blow-heater or special skills required for assembling. Further on branches can easily realized with the T-branch.
Technical data IAL8
- Temperature range: -60…180°C
- Sealing range power cable: 7,0 - 10,5mm
- Sealing range heating cable: thickness 4,7 - 6,5mm; width 10 - 13mm
- Max. current: 20A AC
- Voltage: 12…400V AC
- Terminal cross section: 2,5mm²
- Protection : IP66
- Length of connector/ end: 110mm / 70mm
- Diameter: 25mm
-

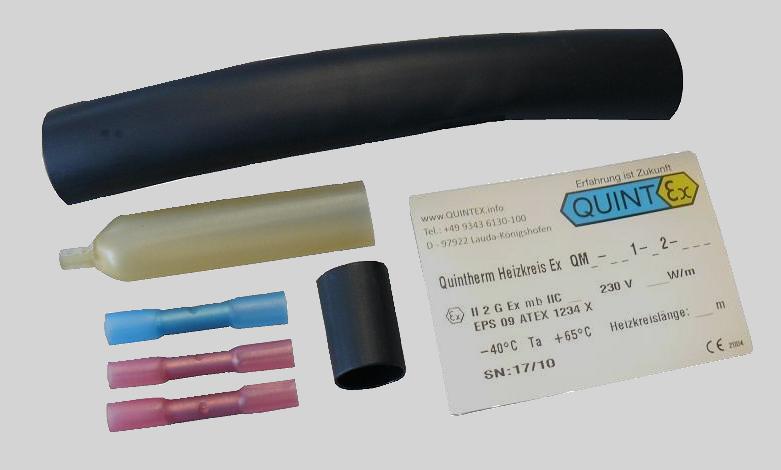

IAL3MQ shrinking set 85°C
Description
The IAL3Ex MQSS contains a very flexible and space saving termination set and is used in hazardous area. The heating cable is connected to a special feeding cable by using butt connectors and afterwards overshrunk with a special shrink tubing. The compact design enable to use this set in cramped space conditions. The illustrated manual helps for an error-free installation. This set contains power connection and end seal.
Technical data IAL3ExMQSS
- Max. ambient temperature: 85°C
- For heating cables type: ILL, ILLw, ILM, ILMP (…CT)
- Cross section of power cable: 1.5mm²
- Length connector: 140mm
- Length end seal: 58mm
-

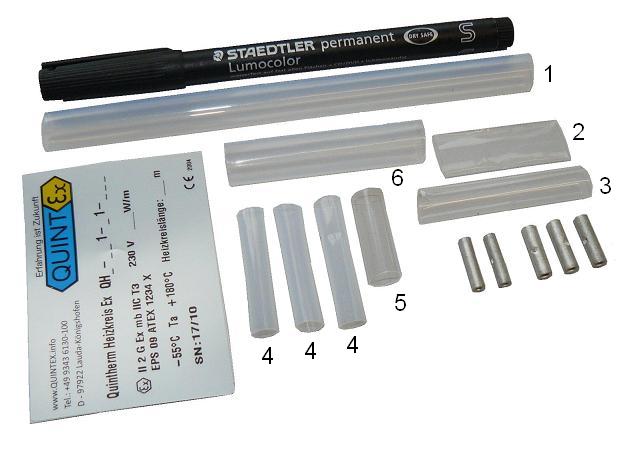

IAL3HQ shrinking set 180°C
Description
The IAL3Ex HQSS contains a very flexible and space saving termination set and is used in hazardous areas. The usage of a special temperature resistant FEP-Connection cable grants different application possibilities at very high temperatures. This set is composed of connection and end seal parts. These are also separately available.
Technical data IAL3ExHQSS
- Max. ambient temperature: 180°C
- For heating tapes type: ILH..CF, ILS..NF
- Cross section of power cable: 1,5mm²
- Length connector: 140mm
- Length end seal: 55mm
-
IAL4SS silicone set 200°C
Description
The termination kits of the IAL4-series are silicon-made termination parts which contains power supply, end seal, a special cable gland and various accessories. These termination kits can be used to connect the heating circuit directly in an Exe approved junction box e.g. AG.. Ex or thermostat enclosure IRM..Ex. There is no separate supply cable needed. Because of the high temperature resistance up to 200 °C, heating cable types ILL.. are suitable as well as mid- & high temperature heating cable types ILM, IPMM, IPL, IPH, ILH, ILHS and ILS.
Technical data IAL4SS/BS
- Max. ambient temperature: 200°C
- For heating tapes type (SS): ILL,IPM
- For heating tapes type(BS): ILLw,ILM,ILH,ILS
- Length connector (SS): 160mm
- Length connector (BS): 165mm
- Length end seal: 50mm
-
IAL1 direct entry set
Description
The IAL1… Connection and Termination set consists of a direct entry sealed termination unit, a Junction Box and all necessary accessories.With this assembly no mounting plate or mounting angle is needed.
Function: It has been designed specifically to reduce the risk of damage to heating tapes at termination points, thus avoiding the need to expose the heating tape as it emerges from the thermal insulation for connection into the junction box.
Technical data IAL1
- Max. temperature enclosure: Non Ex: -55°C..80°C
- T6:-55°C..50°C
- T5: -55°C..55°C
- T4: -55°C..60°C
- Max. temperature feed through: Non Ex: 180°C
- Dimensions enclsoure: 122x120x90mm (LxBxH)
- Dimensions column: 115x110x42mm (LxBxH)
-

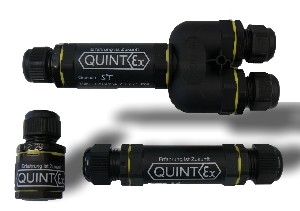

IAL5 Quincon fast connector Non Ex
Description
The Quincon system contains a termination set which is easy and fast to assemble, based on approved screw technology. The compact dimensions makes it possible, that this system can be installed even underneath the thermal insulation of the pipe. The IAL5 product range contains several components such as power supply, end termination, branches and connections. The installation is very easy to handle and requires no special tools such as hot air blower.
Technical data IAL5 Quincon
- Max. temperature : 130°C
- Heating tapes type: ILL, ILLw, ILL..S,ILM, ILMw, ILH, ILHS, ILS
- Cross section terminals: 2,5 mm²
- Max. current: 25A
- Length connector: 125 mm
- Length end seal: 58 mm
Heating cable-connection
-

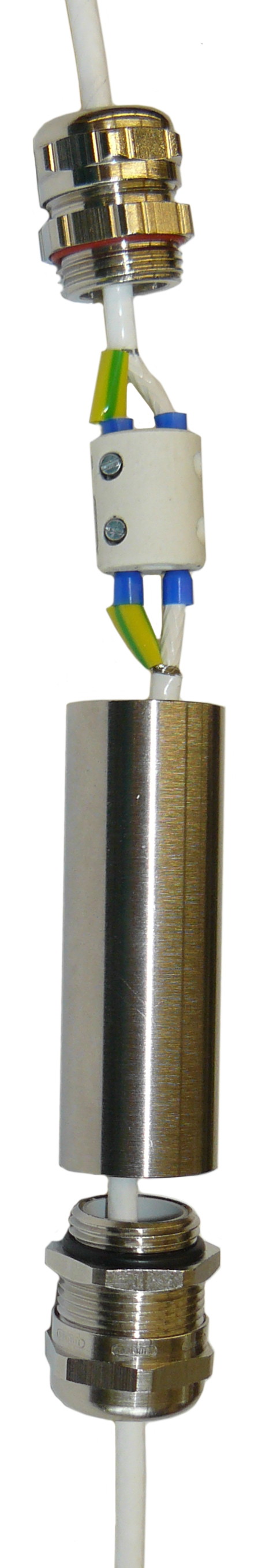

IAK8 connection set for ISK
Allgemeines
The IAK8EK system is a very easy and fast to install connection kit for connecting cold lead and heating cable or for reparation of heating cables based on a screw connection. Because of the very compact design the set can be placed between surface and insulation. There is no blow-heater or special skills required for assembling.
Technische Daten IAK8EK
- Temperature range : -60°C bis 180°C
- Clamping range seal: 3.6 - 6.5mm
- Max. current: 20A
- Voltage: 12…400V
- Cross section terminals: 2.5mm²
- Length(incl. glands): 110mm
-
IAKKE1 Ex cold lead
Description
The IAKKE1 Ex system contains a 1,2m long 2,5m² cold lead, which will be connected with a ISK single core heating cables by using a special termination kit. The low resistance of the cold lead prevents, that the cold leads get warm. A warm-up of the used enclosure/controller is effectively prevented. The termination of this cold lead is very easy and does not require special skills.
Technical data IAKKE
- Length : 1.2m
- Cross section : 2.5mm² bis 6.0mm²
- For heating cable: ISK
- Length of strands: 120mm
-
IAKISM connection ISM
Description
We recommend factory assembled laser sleeves for the use of the ISM mineral insulated Heizleiutung because the on-site assembly requires much experience. With this method, a high quality of the sleeve and thus a long service life of the trace heating system is guaranteed.
Technical data IAKISM
-
Depending on the applied heating cable
Isolations resistance: > 500MOhm - Heating cable: ISM
Junction boxes
-

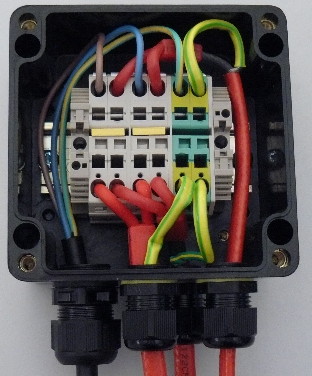

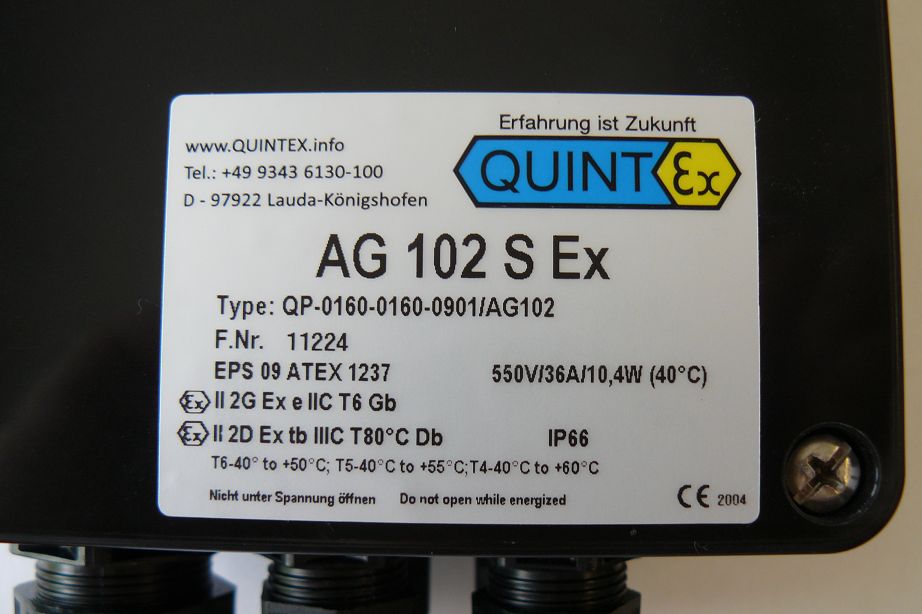

Ex-junction box
Description
DJunction Boxes made of glasfibre-enhanced polyester to connect self-limiting-, single core- as well as mineral insulated heating-cables.This enclosures are available in many versions and useful for almost all kind of trace heating application. This box can be used in extremely environmental conditions and also chemically aggressive environments and resists exposure to mechanical stress.
Customised versions on demand.
Technical data
-
Dimensions: AG 99Ex 110x75x55mm
AG 101Ex 122x120x90mm
AG 102Ex 160x160x90mm
AG 103Ex 260x160x90mm - Protection class: IP 66
- Temperature range: - 55°C bis +60°C
-

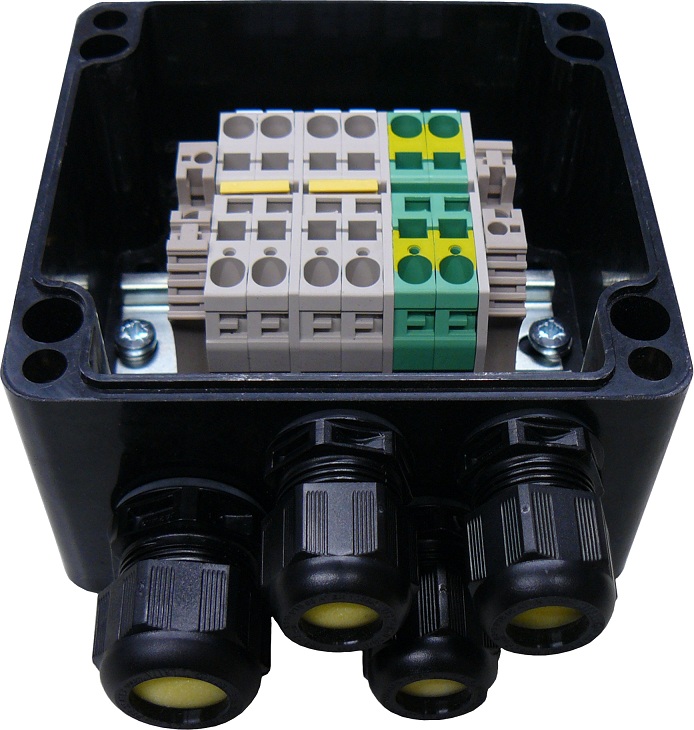

Non-Ex junction box
Description
DJunction Boxes made of glasfibre-enhanced polyester to connect self-limiting-, single core- as well as mineral insulated heating-cables. This enclosures are available in many versions and useful for almost all kind of trace heating application. This box can be used in extremely environmental conditions and also chemically aggressive environments and resists exposure to mechanical stress.
Customised versions on demand.
Technical data
-
Dimensions: AG 99 110x75x55mm
AG 101 122x120x90mm
AG 102 160x160x90mm
AG 103 260x160x90mm - Protection class: IP 66
- Temperature range: - 55°C bis +60°C
