EK109LV allows a conversion of the signals with mV (±25 mV..±2000 mV) standard into mA/V standard signals. It’s useful for DC current monitoring through shunts. The power supply connection is available on the terminals or a special connector (K-BUS) allows a distribution of the power supply to the modules via bus connector. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas.

EK109S is a device that accepts mA/V signals able to convert it into mA/V standard signals. The device can power also all 2-wire sensors and all parameters are confi gurable through dip-switches. The power supply connection is available on the terminals or a special connector (K-BUS) allows a distribution of the power supply to the modules via bus connector. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas.

The EK109UI is designed to accept a single channel standard current or voltage process signal input and give a single, isolated voltage or current output. It has a "Tank" linearization capability designed for use in horizontal cylindrical tank applications, and a "SQRT" function for flow related applications, all of which are easily configured using DIP switches. The DIN-Rail mountable EK109UI offers optional EK-BUS connectivity allowing further savings in time and wiring by bussing together the nominal 24V DC power supply connections.

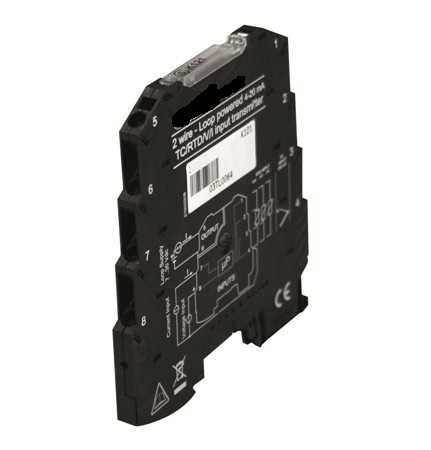

EK121 is a performant universal converter able to manage all analog signals (mA, mV, V, PT100, Pt1000, Pt500, Ni100, TCs, Ohm) and convert / isolate it into 4..20mA loop powered signal. The output mode (normal/inverted), scale overrange, output in case of fault sensor are selectable parameters available by PC software. A 2-way galvanic isolation among input // output circuits assures the integrity of your datas.
